Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE
Model Number:
NES144-7-550M
What is the Difference Between Mono Solar Panels and Poly Solar Panels in Terms of Ecological Footprint?
Both monocrystalline and polycrystalline panels are made from silicon, a conductive material that allows photovoltaic cells in solar panels to generate electricity from solar radiation. Silicon is not found in its natural state but comes from silica, a chemical element found in our earth’s crust.
Once extracted, the silica is refined into silicon to then be crystallized in the form of ingots which will finally be cut into thin strips (commonly known as wafers). All of these processes have a high ecological footprint since they are polluting and energy-consuming.
That said, the ecological footprint of a monocrystalline solar panel is higher than that of a polycrystalline solar panel since its manufacture causes two to three times more material loss. However, knowing that the efficiency of monocrystalline solar panels is higher than that of polycrystalline solar panels, its ecological footprint will be compensated faster than that of a polycrystalline solar panel.
Main Parameters of Sunpok Mono PV Panels
| Electrical Characteristics | |||
| Model | NES144-6-450M | NES132-7-500M | NES144-7-550M |
| Maximum Power(Pmax) | 450W | 500W | 550W |
| Optimum Operating Voltage(Vmp) | 41.00V | 38.35V | 41.96V |
| Optimum Operating Current(Imp) | 10.98A | 13.04A | 13.11A |
| Open Circuit Voltage(Voc) | 49.50V | 45.59V | 49.90V |
| Short Circuit Current(Isc) | 11.42A | 13.93A | 14.00A |
| Module Efficiency | 20.70% | 20.37% | 21.28% |
| Operating Module Temperature | -40 ℃ to +85 ℃ | ||
| Maximum System Voltage | 1500V DC (IEC) | ||
| Power Tolerance | 0~+5W | ||
| STC | irradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used | ||
| Mechanical Characteristics | |||
| Solar Cell | 166mm 9BB Monocrystalline silicon cells | ||
| No. of Cells | 144(6x12x2) | ||
| Dimensions | 2094x1038x35mm；2108x1048x35mm | ||
| Weight | 24.5kg | ||
| Front Glass | 3.2mm(0.13 inches) tempered glass | ||
| Frame | Anodized aluminum alloy | ||
| Junction Box | Ip67 rated | ||
| Output Cables | 4.0 mm 2 (0.006 inches 2 ), 300mm/Customized | ||
| Connectors | MC4 connectors | ||
| Temperature Characteristics | |||
| NOCT | 45±2 ℃ | ||
| Temperature Coefficient of Pmax | -0.380%/ ℃ | ||
| Temperature Coefficient of Voc | -0.300%/ ℃ | ||
| Temperature Coefficient of Isc | 0.060%/ ℃ | ||
| Packing Configuration(35mm) | |||
| Per Pallet | 30Pieces | ||
| Per Container (20' GP) | 282Pieces | ||
| Per Container (40' HQ) | 704Pieces | ||

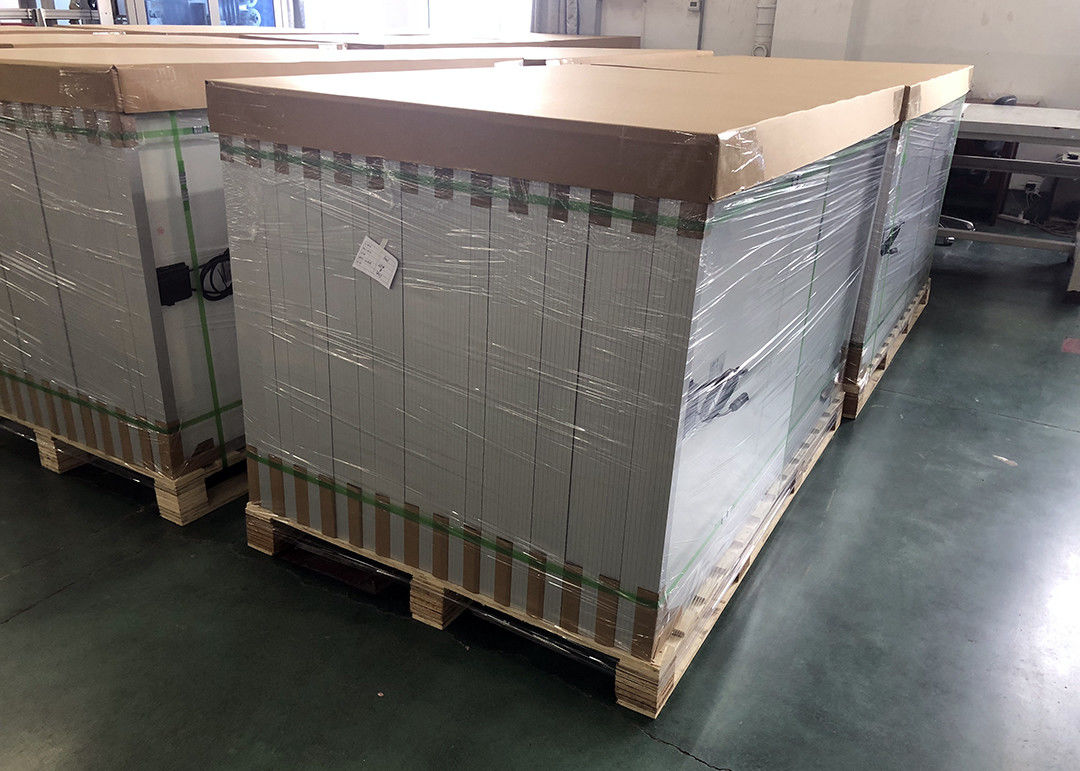

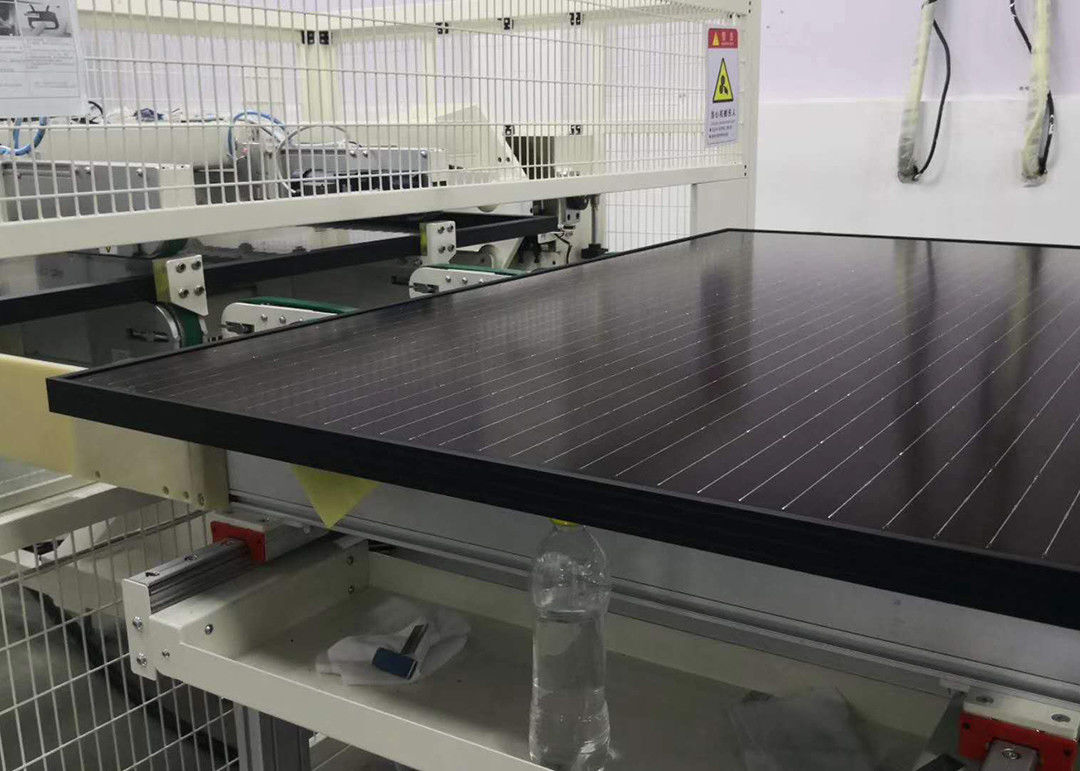

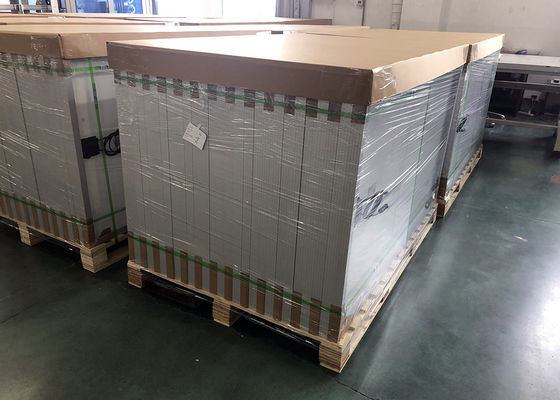

Sunpok Mono PV Panels Production Plant and Packaging
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
