Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE TUV
Model Number:
NES144-7-500M
What is the Difference Between Mono Solar Panels and Poly Solar Panels in Aesthetics?
Many people prefer the look of monocrystalline solar panels. This is due to their black color, which makes them more discreet and allows them to better match the roof of the house versus the dark blue polycrystalline solar panels.
Although this aspect does not concern the operation or performance of solar panels, it is not trivial. Remember that the lifetime warranty for solar panels is 25 years and their lifespan is 40 years. Making the right choice from the start is, therefore, essential because 25 years is a long time!
The image below shows the color difference between the two types of solar panels.

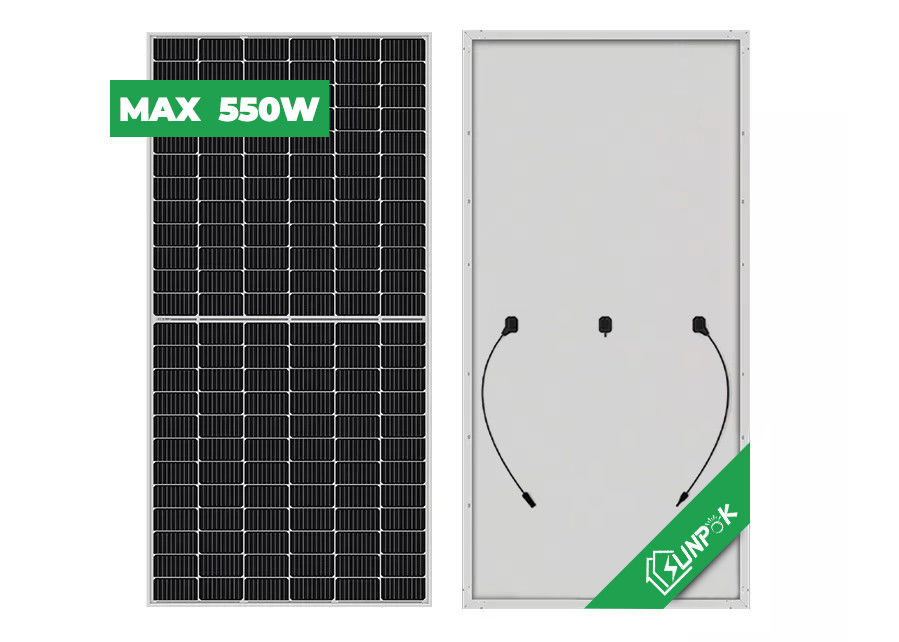

Main Parameters of Sunpok Mono PV Panels
| Electrical Characteristics | |||
| Model | NES144-6-450M | NES132-7-500M | NES144-7-550M |
| Maximum Power(Pmax) | 450W | 500W | 550W |
| Optimum Operating Voltage(Vmp) | 41.00V | 38.35V | 41.96V |
| Optimum Operating Current(Imp) | 10.98A | 13.04A | 13.11A |
| Open Circuit Voltage(Voc) | 49.50V | 45.59V | 49.90V |
| Short Circuit Current(Isc) | 11.42A | 13.93A | 14.00A |
| Module Efficiency | 20.70% | 20.37% | 21.28% |
| Operating Module Temperature | -40 ℃ to +85 ℃ | ||
| Maximum System Voltage | 1500V DC (IEC) | ||
| Power Tolerance | 0~+5W | ||
| STC | irradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used | ||
| Mechanical Characteristics | |||
| Solar Cell | 166mm 9BB Monocrystalline silicon cells | ||
| No. of Cells | 144(6x12x2) | ||
| Dimensions | 2094x1038x35mm；2108x1048x35mm | ||
| Weight | 24.5kg | ||
| Front Glass | 3.2mm(0.13 inches) tempered glass | ||
| Frame | Anodized aluminum alloy | ||
| Junction Box | Ip67 rated | ||
| Output Cables | 4.0 mm 2 (0.006 inches 2 ), 300mm/Customized | ||
| Connectors | MC4 connectors | ||
| Temperature Characteristics | |||
| NOCT | 45±2 ℃ | ||
| Temperature Coefficient of Pmax | -0.380%/ ℃ | ||
| Temperature Coefficient of Voc | -0.300%/ ℃ | ||
| Temperature Coefficient of Isc | 0.060%/ ℃ | ||
| Packing Configuration(35mm) | |||
| Per Pallet | 30Pieces | ||
| Per Container (20' GP) | 282Pieces | ||
| Per Container (40' HQ) | 704Pieces | ||
Sunpok Mono PV Panels Production Plant and Packaging
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
