Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE TUV Rohs
Model Number:
NES144-6-450M
When comparing monocrystalline (mono) solar panels and polycrystalline (poly) solar panels in terms of service life, there is generally no significant difference between the two types.
Both monocrystalline and polycrystalline solar panels typically come with two warranties: a physical warranty and an efficiency warranty. The physical warranty typically spans 15 to 30 years and covers any physical damage that may occur to the panels. The efficiency warranty, on the other hand, extends for 20 to 30 years and pertains to the panels' efficiency after 25 years of operation. For instance, if an 80% efficiency warranty is stated after 25 years, it means that the panels will still produce 80% of the electricity they generated in their first year after 25 years. Despite producing slightly less energy, the panels will still function effectively.
It's important to note that the duration of these warranties is determined more by the manufacturer rather than the specific panel technology, whether monocrystalline or polycrystalline. Therefore, when considering the service life of solar panels, it's essential to evaluate the warranties offered by different manufacturers, as they may vary. Ultimately, the choice of manufacturer plays a significant role in ensuring the best warranties and service life for your solar panels.

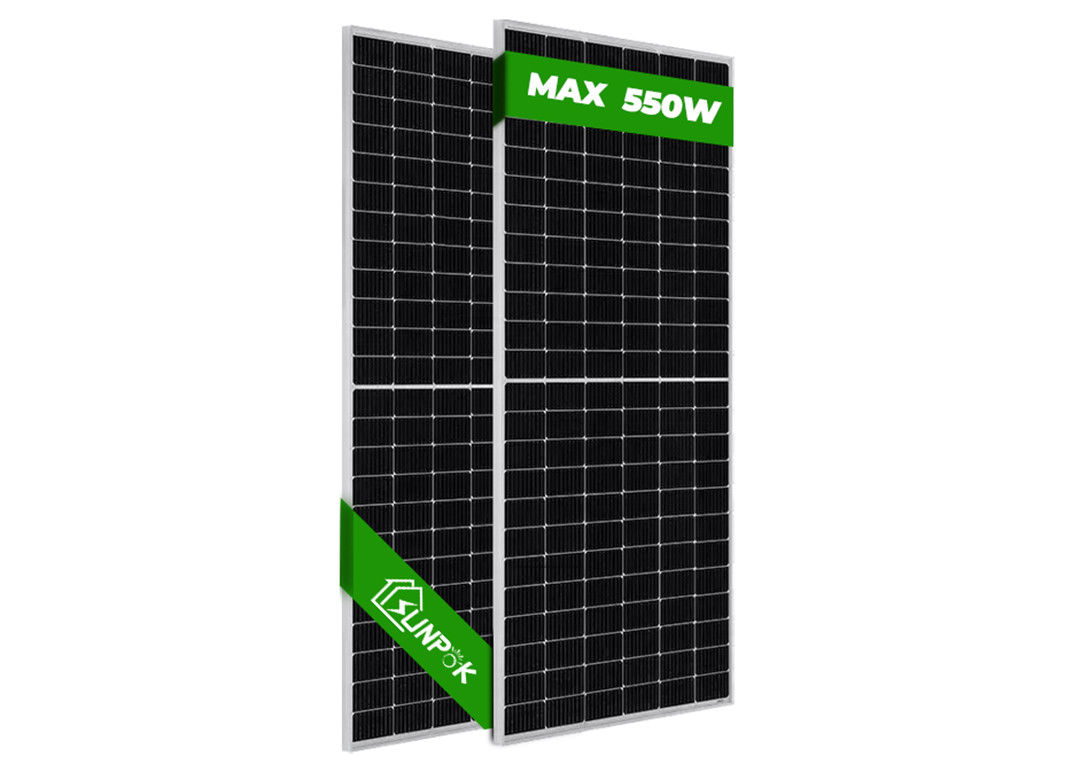

Main Parameters of Sunpok Mono PV Panels
| Electrical Characteristics | |||
| Model | NES144-6-450M | NES132-7-500M | NES144-7-550M |
| Maximum Power(Pmax) | 450W | 500W | 550W |
| Optimum Operating Voltage(Vmp) | 41.00V | 38.35V | 41.96V |
| Optimum Operating Current(Imp) | 10.98A | 13.04A | 13.11A |
| Open Circuit Voltage(Voc) | 49.50V | 45.59V | 49.90V |
| Short Circuit Current(Isc) | 11.42A | 13.93A | 14.00A |
| Module Efficiency | 20.70% | 20.37% | 21.28% |
| Operating Module Temperature | -40 ℃ to +85 ℃ | ||
| Maximum System Voltage | 1500V DC (IEC) | ||
| Power Tolerance | 0~+5W | ||
| STC | irradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used | ||
| Mechanical Characteristics | |||
| Solar Cell | 166mm 9BB Monocrystalline silicon cells | ||
| No. of Cells | 144(6x12x2) | ||
| Dimensions | 2094x1038x35mm；2108x1048x35mm | ||
| Weight | 24.5kg | ||
| Front Glass | 3.2mm(0.13 inches) tempered glass | ||
| Frame | Anodized aluminum alloy | ||
| Junction Box | Ip67 rated | ||
| Output Cables | 4.0 mm 2 (0.006 inches 2 ), 300mm/Customized | ||
| Connectors | MC4 connectors | ||
| Temperature Characteristics | |||
| NOCT | 45±2 ℃ | ||
| Temperature Coefficient of Pmax | -0.380%/ ℃ | ||
| Temperature Coefficient of Voc | -0.300%/ ℃ | ||
| Temperature Coefficient of Isc | 0.060%/ ℃ | ||
| Packing Configuration(35mm) | |||
| Per Pallet | 30Pieces | ||
| Per Container (20' GP) | 282Pieces | ||
| Per Container (40' HQ) | 704Pieces | ||
Sunpok Mono PV Panels Production Plant and Packaging
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
