SUNPOK Lifepo4 Battery Energy Storage System ESS 10KWh 15KW Solar Energy System

SUNPOK Lifepo4 Battery Energy Storage System ESS 10KWh 15KW Solar Energy System

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

SP-AIO-230V-48V-5Kw-DD

Contact Us
Request A Quote
Product Details
Product Name:
All-in-one Energy Storage System
Battery Capacity:
100Ah
Battery Cycle Life:
Over 6000 Cycles
Battery Type:
LiFePo4
Application:
Home Energy Storage
Certification:
CE MSDS UN38.3
Warranty:
5 Years
OEM/ODM:
Yes
Color:
White(Customizable)
Output Power:
5KW
Storage Temperature:
-20-85℃
Weight:
0.5kg
Working Temperature:
0-40℃
Max Charge/Discharge Efficiency:
95%
Operating Humidity:
0-90%RH
Operating Temperature:
-20°C~60°C
Type:
ESS
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 2350/Pcs
Packaging Details
Wooden box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 Unit Per Month
Product Description

Sunpok All In One ESS: Power Your Life with Seamless Efficiency

In the realm of energy solutions, the marriage of simplicity and versatility marks the true difference. Enter Sunpok's revolutionary All In One ESS (Energy Storage System) – an innovation that promises to redefine your energy management experience. Let's embark on a journey to discover how this cutting-edge solution can elevate your power utilization like never before.



Efficiency Meets Integration: The Unison of Power



Imagine a singular system seamlessly weaving energy storage, management, and adaptability. Sunpok's All In One ESS goes beyond a simple energy solution; it presents a holistic energy management experience, gifting you consistent power, intelligent control, and efficiency at your command.



Adaptive Energy Mastery: Precision Perfected



Sunpok's All In One ESS establishes an entirely new benchmark for intelligent energy management. Regardless of whether it's for your residence, your business, or your leisurely pursuits, this system fluidly adjusts to your energy requirements, dynamically optimizing consumption while minimizing wastage with an unrivaled precision.



Sleek and Practical Design: Where Form Meets Function



By choosing Sunpok's All In One ESS, you're not just investing in a sleek design; you're embracing a fusion of form and function. This system seamlessly unifies multiple components into an integrated unit, trimming complexity while ensuring an energy flow that's not only efficient but also visually captivating.



Sustainability at Heart: Powering a Greener Tomorrow



Sunpok's allegiance to sustainability is evident within the very core of the All In One ESS. Equipped with advanced energy management capabilities, this isn't just about reducing costs – it's an active contribution to a more environmentally conscious future. Through optimized energy usage and minimized waste, you're participating in the preservation of our planet.



Empowerment Through Control: Your Energy, Your Way



From monitoring energy remotely to real-time adjustments guided by data insights, Sunpok's All In One ESS grants you unparalleled mastery over your energy ecosystem. Seamlessly navigate and regulate energy consumption, making choices that mirror your unique preferences.



Elevate Your Energy Experience: The Dawn of a New Era



Sunpok's All In One ESS is not just a system; it's a paradigm shift in energy management. Immerse yourself in the advantages of adaptive energy optimization, seamless integration, and a reduced environmental footprint. Stand at the forefront of the future of energy solutions with Sunpok All In One ESS – where innovation weaves your energy narrative.



Sunpok's All In One ESS: Your Gateway to Elevated Energy



Your quest for an energy management solution that resonates ends here. Witness efficiency, reliability, and sustainability converge through advanced energy technology. Elevate your energy management experience with Sunpok – where comprehensive power harmonizes with intelligent control, propelling you into a future charged by innovation.


SUNPOK All-In-One Battery With Inverter

Sunpok all-in-one battery and inverter adopts a convenient battery modular design, integrates inverter, EMS, and UPS management systems, and strives to create an efficient, safe, and intelligent home energy storage system. Not only can it meet various energy needs such as seamless switching of power supply and remote control, but it can also configure intelligent operation solutions according to electricity consumption habits and peak and valley electricity prices, bringing an economical, safe, and convenient operating experience to families.

Features:
● Flexible and convenient: standard battery modular design, flexible configuration, convenient maintenance, and convenient expansion; DC/DC, DC/AC, and STS different types of modules can be freely matched to suit local conditions; DC/DC supports various types of energy storage batteries or Photovoltaic module access can also realize DC remote supply voltage and power control; DC/DC has two inputs, which can be connected in parallel or independently, realizing multi-channel MPPT and optimal management of multi-channel batteries;

● Efficient and intelligent: The high-efficiency version adopts a single-stage DC/AC structure to improve system efficiency; DC/DC and DC/AC both adopt a three-level circuit design with high conversion efficiency; advanced interleaved control technology, small ripple current, and extended The service life of the battery; the patented harmonic suppression technology is adopted to intelligently adapt to diversified scenarios such as industrial and commercial, micro-grid, and distribution station terminals; the number and functions of self-identifying modules of the micro-grid intelligent management system integrate multiple operating strategies and communication interfaces, and are unified Scheduling and intelligent management; when the mains power fails or fails, the STS module automatically cuts off the faulty circuit, and the optical storage system provides off-grid power supply to ensure the reliability of power supply.

● Recommended configuration: a combination of solar and storage, peak shaving and valley filling: provincial distribution of power frequency transformers; microgrid multi-energy complementary power supply: configuration of power frequency transformers; uninterrupted power supply of important loads: configuration of power frequency transformers.


All-in-one Energy Storage System Parameters


Model SP-AIO-3Kw-24V-YD SP-AIO-5KW-48V-YD
Voltage 25.6V 51.2V
Capacity 200Ah 200Ah
Energy 5.12KwH 10.24KwH
Charging voltage 29.2V 58.4V
Discharge voltage 20.8V 41.6V
Charging current 100A 100A
Discharging current 150A 150A
Communication Internal communication
Power 3Kw 5Kw
Battery input 24Vdc 48Vdc
MPPT 60-180Vdc,80A 60-180Vdc,80A
AC input/output 220/230Vac,50/60Hz 220/230Vac,50/60Hz
AC Charge Current 15A 15A
AC output waveform Pure sine wave Pure sine wave
Size 814*550*320mm 1016*550*320mm
Charging temperature 0℃~45℃
Discharge temperature -20℃~55℃
Storage temperature -10°C~45°C (charge/discharge every 2 months)
Weight 110Kg 185Kg

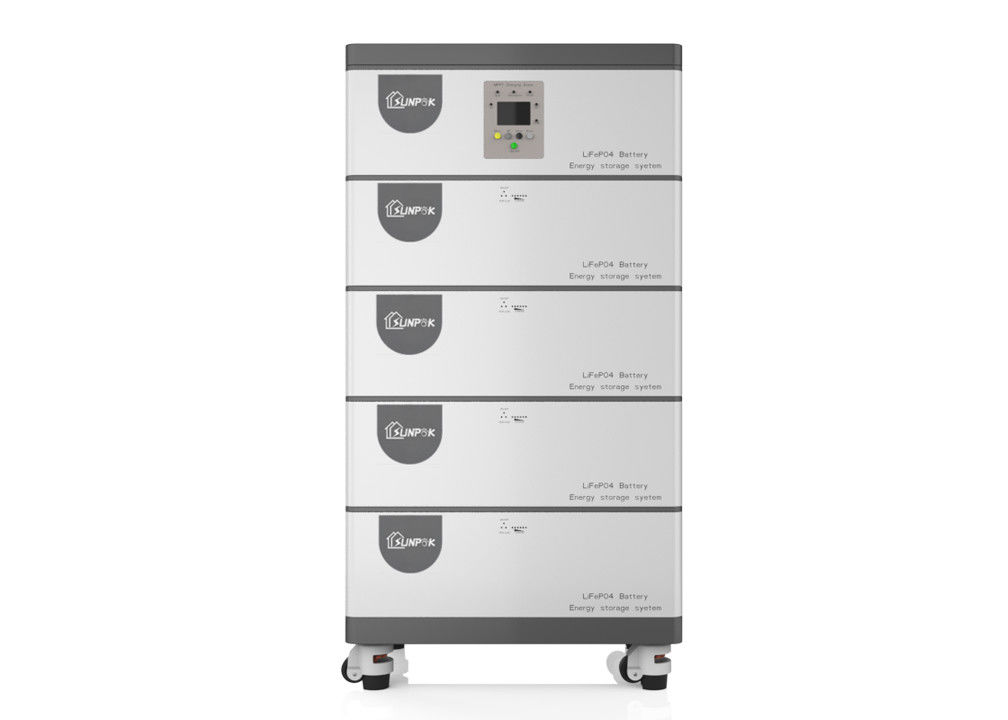

SUNPOK Lifepo4 Battery Energy Storage System ESS 10KWh 15KW Solar Energy System 0


About Sunpok Energy

Guangzhou sunpok energy co., ltd. is a high-tech green energy enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in September 2016.

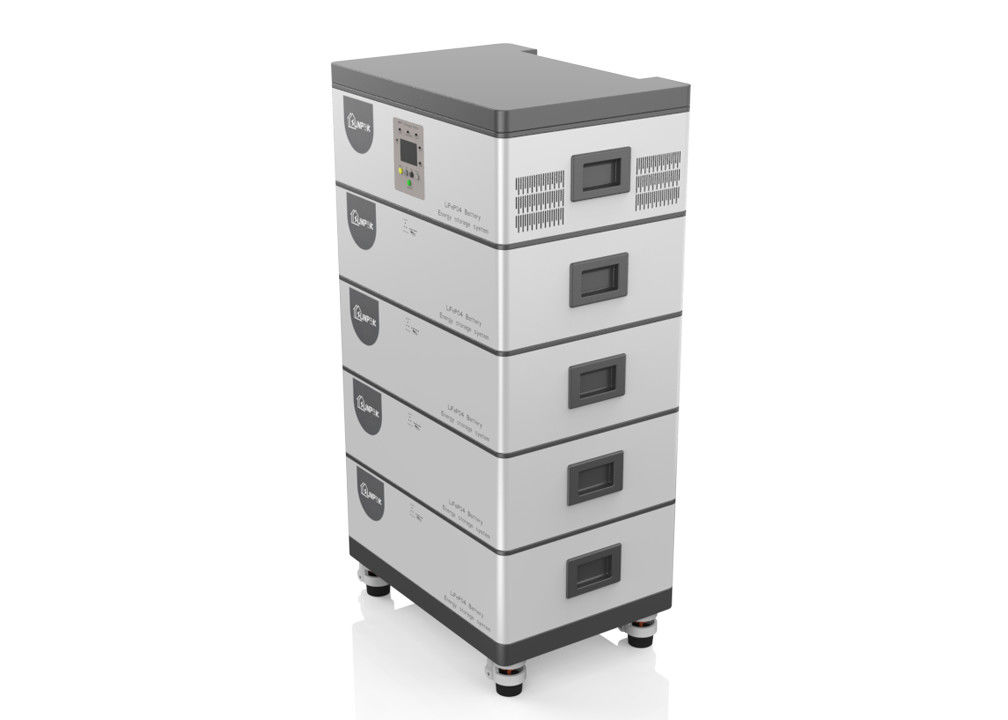

SUNPOK Lifepo4 Battery Energy Storage System ESS 10KWh 15KW Solar Energy System 1

After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.

The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:

1. Energy Storage Lithium Battery

2. 48V Lithium Ion Battery

3. Lithium Portable Power Station

4. All In One ESS

5. Complete Off Grid Solar System

6. Hybrid Solar System Kit

7. Wind Solar Hybrid Power System

8. Off Grid Inverter

9. Deep Cycle Lithium Battery

10. 12V Gel Battery

11. Mono PV Panels

12. Residential Wind Turbine

Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.


FAQ

Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2:What is the warranty period, and how many years?
Answer 2: The warranty period for all-in-one ess is 5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to oversea help our customers if necessary.
Question 4:How to become your agent?
Answer 4: Contact us through web email or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
