Place of Origin:
China
Brand Name:
Sunpok Energy
Certification:
CE MSDS UN38.3
Model Number:
HYP4850U100-H
Video
Video
Video
Are you tired of being at the mercy of rising electricity costs and unreliable power grids? Imagine a life where you have the freedom to generate your electricity, harnessing the power of the sun and embracing a greener future. Welcome to the world of Sunpok Off-Grid Inverter - your gateway to energy independence and beyond.
Embrace True Energy Freedom
Sunpok Off-Grid Inverter is here to liberate you from the limitations of the traditional power grid. Say goodbye to power outages and hello to uninterrupted electricity supply. With this innovative inverter, you're no longer tied to utility companies or affected by grid failures. Embrace true energy freedom and take charge of your energy destiny.
Efficiency at its Finest
At Sunpok, we understand the importance of efficiency in maximizing renewable energy. Our Off-Grid Inverter is crafted with cutting-edge technology to convert solar power into usable electricity with unmatched efficiency. Experience optimal performance as you make the most of the sun's energy to power your life.
A Greener Tomorrow Starts Today
By choosing Sunpok Off-Grid Inverter, you're making a conscious choice for a greener and more sustainable future. Embrace renewable energy and reduce your carbon footprint. Join the global movement towards a cleaner planet and take pride in knowing that your energy choices make a positive impact on the environment.
Reliability You Can Trust
Life is unpredictable, but your energy source shouldn't be. Sunpok Off-Grid Inverter is designed for resilience, capable of withstanding adverse weather conditions and providing continuous power supply when the grid fails. Feel secure, knowing that you and your loved ones are always connected and protected.
Simple Installation, Seamless Integration
Going off-grid doesn't have to be complicated. Sunpok Off-Grid Inverter is designed for easy installation and seamless integration with your existing renewable energy setup. Our user-friendly interface ensures a hassle-free experience, allowing you to focus on enjoying your newfound energy independence.
Savings That Add Up
Investing in Sunpok Off-Grid Inverter is not just a smart energy choice; it's also a wise financial decision. Watch your energy bills shrink as you reduce your reliance on traditional electricity sources. Over time, your savings accumulate, leading to long-term financial benefits for you and your family.
Customized Solutions for Your Needs
We understand that every energy requirement is unique. Whether you're a homeowner seeking energy autonomy, an adventurer embracing off-grid living, or a business owner aiming to reduce operational costs, Sunpok Off-Grid Inverter offers customized solutions tailored to fit your specific needs.
Join the Energy Revolution with Sunpok
Join the growing community of energy pioneers who are embracing the power of Sunpok Off-Grid Inverter. Experience the joy of energy freedom and make a positive impact on the world.
Embrace the Power of Sunpok Off-Grid Inverter
Are you ready to embrace a life of energy independence and sustainability? Take the leap towards a greener, more self-sufficient future. Unleash the power of Sunpok Off-Grid Inverter and embark on a journey towards a brighter, cleaner tomorrow.
Illuminate Your Life with Sunpok
Say goodbye to grid dependency and embrace the brilliance of a sustainable future. Illuminate your life with Sunpok Off-Grid Inverter and make a lasting impact on the world. Embrace the power of a brighter tomorrow - choose Sunpok today!

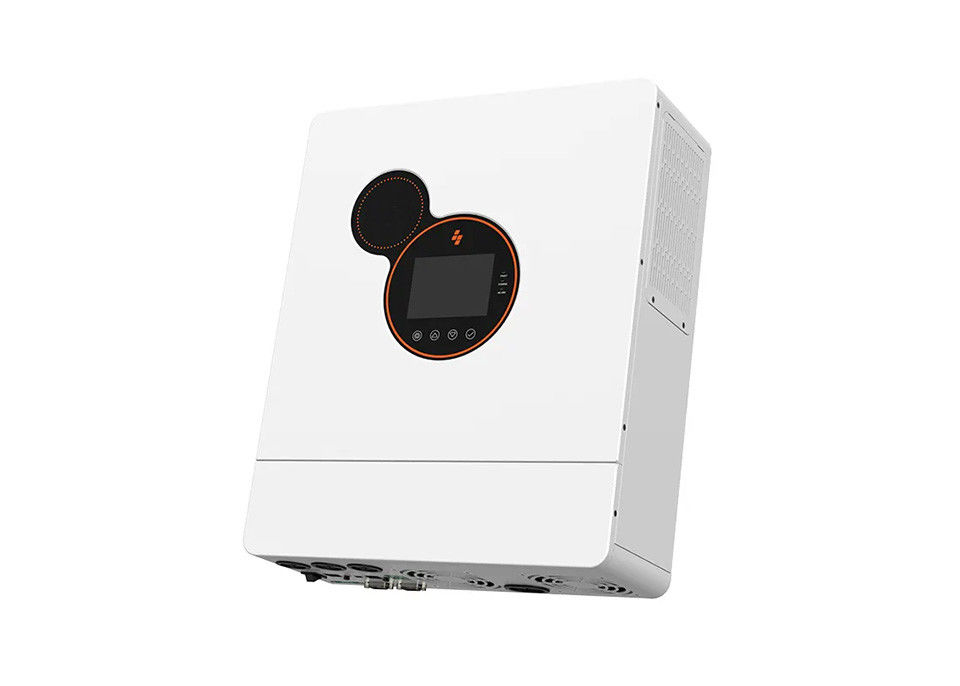

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | HYP4850U100-H | |
| INVERTER OUTPUT | ||
| Num. of MPPT Trackers | 1 | |
| Max.PV Array Power | 5,500W | |
| Max.Input Current | 22A | |
| Max.Voltage of Open Circuit | 500Vdc | |
| MPPT Voltage Range | MPPT Voltage Range | |
| MAINS/GENERATOR INPUT | ||
| Input Voltage Range | 90～140Vac | |
| Frequency Range | 50/60Hz | |
| Bypass Overload Current | 63A | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.9% | |
| 99.9% | >92% | |
| GENERAL | ||
| Dimensions | 446.9*350*133mm | |
| Weight | 13kg | |
| Protection Degree | IP20,indoor only | |
| IP20,indoor only | -15~55℃ | |
| Noise | <60dB | |
| Cooling Method | Internal Fan | |
| Warranty | 2 years | |
| COMMUNICATION | ||
| Embedded Interfaces | RS485 / CAN / USB / Dry contact | |
| External Modules(Optional) | Wi-Fi / GPRS | |
| CERTIFACATION | ||
| Safety | CE(LEC62109-1) | |
| EMC | EN61000 | |
| Rohs | Yes | |
Safety and Protection Features: Safety is a top priority with the HYP4850U100-H Off-Grid Inverter. It includes comprehensive protection features such as overload protection, over-temperature protection, and short-circuit protection. These safeguards ensure the longevity of the inverter and the safety of connected devices.
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
