Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
SP-12100-GEL
As the world shifts towards sustainable energy solutions, solar power is at the forefront of the renewable energy revolution. Sunpok Energy and Gel Batteries have collaborated to provide innovative and efficient energy storage solutions for solar systems. In this article, we will explore the partnership between Sunpok Energy and Gel Batteries, highlighting the advantages of their combined technologies in maximizing the potential of solar energy.
Sunpok Energy: Your Gateway to Sustainable Solar Power:
Sunpok Energy is a leading provider of comprehensive solar energy solutions, dedicated to creating a greener future. With their expertise in solar panel manufacturing, advanced inverters, and energy storage systems, Sunpok Energy offers reliable and high-performance products that enable homeowners and businesses to harness the power of the sun.
Gel Batteries: Unleashing the Full Potential of Solar Energy Storage:
Gel Batteries, also known as Gel Cell Batteries, are an advanced type of lead-acid battery specifically designed for solar energy storage. Gel Batteries utilize a gel electrolyte, consisting of a silica-based gel and sulfuric acid, resulting in a stable and efficient energy storage solution. The unique properties of Gel Batteries make them an ideal choice for solar systems.
Advantages of Gel Batteries for Solar Energy Storage:
High Efficiency: Gel Batteries offer excellent charge acceptance, enabling efficient storage of solar energy. They can efficiently capture and store the energy generated by solar panels, ensuring maximum utilization and minimizing energy wastage.
Long Cycle Life: Gel Batteries have an extended lifespan compared to traditional lead-acid batteries, allowing for long-term usage and reducing the need for frequent replacements. This durability translates into cost savings for solar system owners.
Deep Cycling Capability: Gel Batteries excel in deep cycling applications, withstanding frequent charge and discharge cycles. This capability is especially valuable for off-grid solar systems and areas with intermittent sunlight, providing reliable backup power when needed.
Maintenance-Free Operation: Gel Batteries are sealed and require minimal maintenance. They eliminate the need for regular water level checks and acid adjustments, providing a hassle-free energy storage solution for solar system owners.
Environmental Sustainability: By utilizing solar energy and storing it in Gel Batteries, users can significantly reduce their carbon footprint. Solar systems powered by Gel Batteries contribute to a cleaner and more sustainable environment by minimizing reliance on fossil fuels.
Sunpok Energy and Gel Batteries: A Perfect Combination:
Sunpok Energy seamlessly integrates Gel Batteries into their solar energy systems, ensuring reliable and efficient energy storage. By combining Sunpok Energy's expertise in solar technology with the advanced features of Gel Batteries, users can maximize their solar power utilization, reduce energy costs, and achieve greater energy independence.
Sunpok Energy and Gel Batteries are driving the adoption of solar energy by providing reliable and efficient energy storage solutions. Gel Batteries' high efficiency, long cycle life, and maintenance-free operation make them an ideal choice for solar systems. Partner with Sunpok Energy to access cutting-edge solar technologies and unlock the full potential of clean, sustainable energy for a brighter and more sustainable future.
For the latest information on Sunpok Energy and Gel Batteries, visit the official Sunpok Energy website or consult authorized dealers. Embrace the power of solar energy with Sunpok Energy and Gel Batteries, and join the movement towards a greener and more sustainable world.

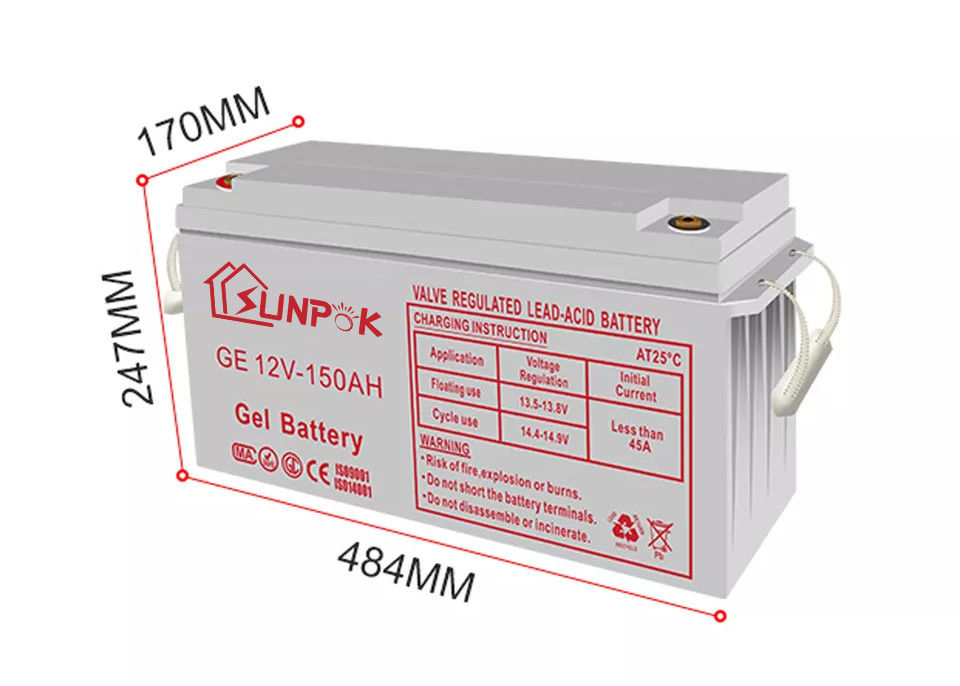

Sunpok 12V Gel Battery Main Parameter
| Model | SP-12100-GEL | SP-12150-GEL | SP-12200-GEL | SP-12250-GEL |
| Cells Per Unit | 6 | |||
| Voltage Per Unit | 12V | |||
| Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C |
| Weight | 15Kg | 29kg | 42kg | 58.5kg |
| Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ |
| Terminal | F1/F2 | |||
| Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) |
| Design Life | 10~15 years | |||
| Maximum Charging Current | 25A | 37.5A | 50A | 62.5A |
| Float Charging Voltage |
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
|
|||
| Cycle Use Voltage |
14.4 V~14.9 V @ 25°C
Cycle Use Voltage
Temperature Compensation: -30mV/°C/Cell
|
|||
| Operating Temperature Range |
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
|
|||
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | |||
Advantages:
1. High-purity lead-tin alloy, reduce battery self-discharge rate and increase battery service life.
2. ABS battery case made by LG raw material to increase battery service life.
3. Heat sealing technique instead of glue sealing to increase the tightness and stability of the battery.
4. TTP technique not only reduces internal resistance and material cost but also increases battery life.
5. Conduct four large current discharge texting before the package to insure battery quality.
6. Full charge before delivery. Buy and use it directly.
Main Applications
12V GEL battery can be widely used in solar energy storage, wind energy storage, backup power and other scenarios.
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech green energy enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in September 2016.
After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.
48V Energy Storage Lithium Battery Product Display
The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.
Use the world's leading testing equipment to carry out comprehensive testing of batteries.
Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.
48V Energy Storage Lithium Battery Project Display
FAQ
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.
Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.
Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for batteries is 5-10 years.
Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 5: How to become your agent?
Answer 5: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 6: Is the sample available and free?
Answer 6: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 7: Do you support OEM/ODM?
Answer 7: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
