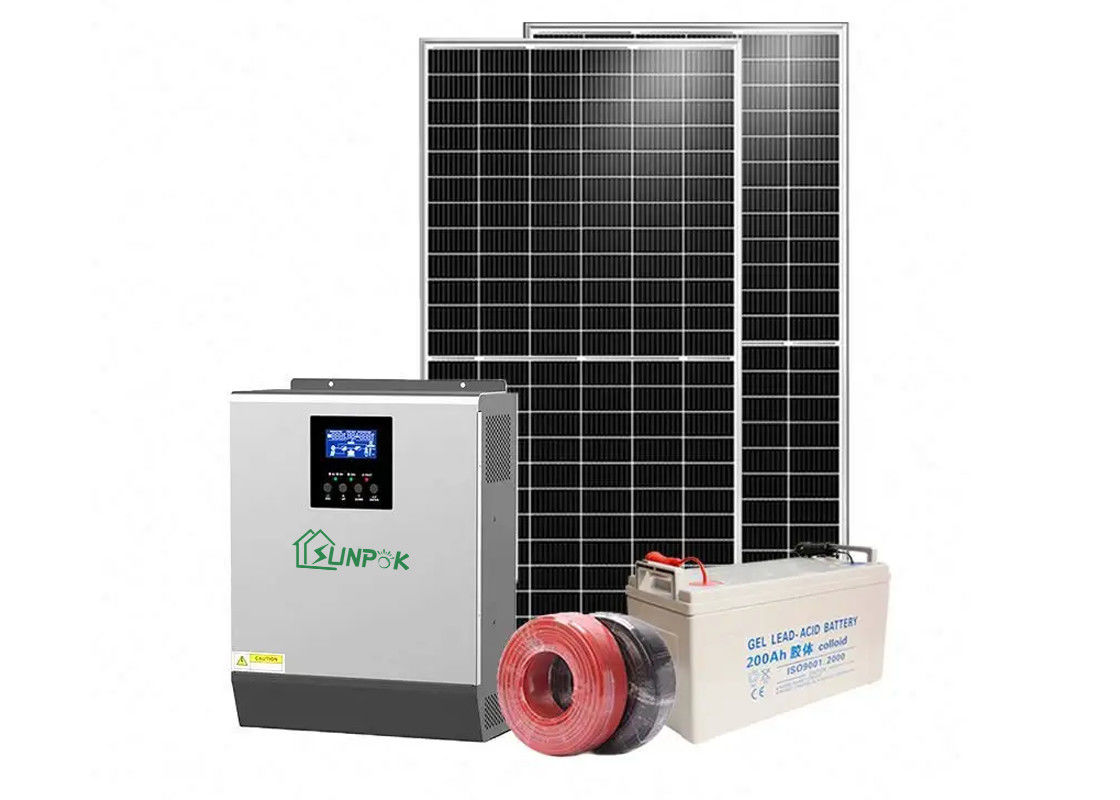

European 5kw 48v Single Phase Solar Converter Off Grid Solar Inverter

European 5kw 48v Single Phase Solar Converter Off Grid Solar Inverter

48v Single Phase Solar Converter

5kw Single Phase Solar Converter

Single Phase Off Grid Solar Inverter

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS 3K

Contact Us
Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
5KW
Output Waveform:
Prue Sine Wave
Display:
LCD+LED Display
Type:
DC/AC Inverters
Warranty:
2 Years
OEM & ODM:
Avaiable
Output Voltage Waveform:
Pure Sine Wave
Highlight:

48v Single Phase Solar Converter

,

5kw Single Phase Solar Converter

,

Single Phase Off Grid Solar Inverter

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

In Stock!!! European 5kw 48v Single Phase Solar Converter Off Grid Solar Inverter 5kw

Off Grid Inverter | Off Grid Inverter System


The sun is one of the most powerful sources of energy on the planet. Sunpok Energy harnesses its power to help you power your home and business. With our reliable off grid inverter system, you can rely on the sun to provide you with a consistent stream of energy. With Sunpok Energy’s patented technology and engineering, you are sure to find an off grid inverter system that will fit your needs.


Sunpok Energy off grid inverter systems are efficient and cost-effective. Our highly efficient inverters will reduce your reliance on conventional sources of energy and help you cut down on your energy bills. Sunpok Energy’s off grid inverter systems offer reliable performance and are easy to install and maintain.



In addition to offering you a reliable source of energy, our off grid inverter systems are also environmentally friendly. Our technology uses natural sunlight to power your home or business and ultimately reduces carbon emissions. By choosing Sunpok Energy off grid inverters, you are making a contribution towards a healthier and more sustainable future.



When it comes to providing a reliable source of energy, Sunpok Energy’s off grid inverter systems are the perfect choice. Our inverter systems are designed to be reliable, efficient, and cost-effective. They are also environmentally friendly, so you can be sure that you are doing your part to help the planet. With Sunpok Energy, you can count on the sun for your energy needs.





European 5kw 48v Single Phase Solar Converter Off Grid Solar Inverter 0





SUNPOK Off-Grid Off-Grid Inverter



Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.





Model MPS1K-24 MPS1K-48 MPS2K-24 MPS 3K-24 MPS 3K-48 MPS 4K MPS 5K
Rated Capacity 1000VA800W 1000VA/1000W 2000VA1600W3 3000VA2400W 3000VA2400W 4000VA/3200W 5000VA4000W
INPUT
Voltage 120 VAC or 230 VAC 230VAC
Selectable Voltage Range

95-140VACor

170-280VAC(ForPersonal Computers)

65-140VACor90-280

VAC(ForHomeAppliances)



170-280 VAC(For Personal Computers)

90-280 VAC(For Home Appliances)

Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)

110/120 VAC 5%(User

selectable)or 230VAC 5%

230VAC+5%
Surge power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency(Peak) 90%-93% 93%
Transfer Time

10ms (for personal computers)

20ms(for home appliances)

Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 48 VDC 24 VDC 24VDC 48VDC 48VDC
Floating Charge Voltage 27VDC 54VDC 27VDC 27VDC 54VDC 54 VDC
Overcharge Protection 31VDC 62VDC 31VDC 31VDC 62VDC 60 VDC
Maximum Charge Current 0Aor10A/20A* 0Aor 10A/15A* 20Aor 30A 20Aor30A 10Aor15A 60A
SOLAR CHARGER
Maximum PV Array Power 600 W 900 W 600 W 600W 900W 3000 W
MPPT Range@ Operating Voltage

30VDC~

66VDC

60VDC~

80VDC

30VDC~

66VDC

30VDC~

66VDC

60VDC~

88VDC

60VDC~

115VDC

Maximum PV Array OpenCircuit Voltage 75VDC 75VDC 75VDC 75VDC 102VDC 145VDC
Maximum Charging Current 25A 20A 25A 25A 18A 60A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension.D*W*H(mm) 128 x272 x 355
Net Weight (kgs) 7.4 7.6 8.0 12.5 13.5
Communication Interface

RS485/RS232(Standard)

LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C-55°C
Storage Temperature -15°C-60°C

Product specifications are subject to change without further notice.
MODEL MPS1K-24 MPS1K-48 MPS 2K-24 MPS 3K-24 MPS 3K-48 MPS 4K MPS5K
Inverter Power 800W 1000W 1600W 2400W 2400W 3200W 4000W
Pmax. generated from solarcharger 25Amp,600W 20Amp,900W 25Amp,600W 20Amp,900W 20Amp,900W

60Amp,

3000W

60Amp,

3000W

Best Panel Configuration

500Wp

(250Wp x 2pcs)

1000Wp

(250Wp x 2pcs)

500Wp

(250Wp x 2pcs)

500Wp

(250Wp x 2pcs)

1500Wp

(250Wp x 6pcs)

3000Wp

(250Wpx12pcs)

3000Wp

(250Wpx12pcs)



European 5kw 48v Single Phase Solar Converter Off Grid Solar Inverter 1





Features



Efficient power generation with higher income:



1.5 times overload output (200ms), resist the impact of instantaneous load



Wide voltage input range, early start and late stop, longer lasting power generation



Photovoltaic controller power upgrade can be connected to 5kW



MPPT has a wide voltage range and can adapt to various crystalline silicon components



Support mains bypass fast charging

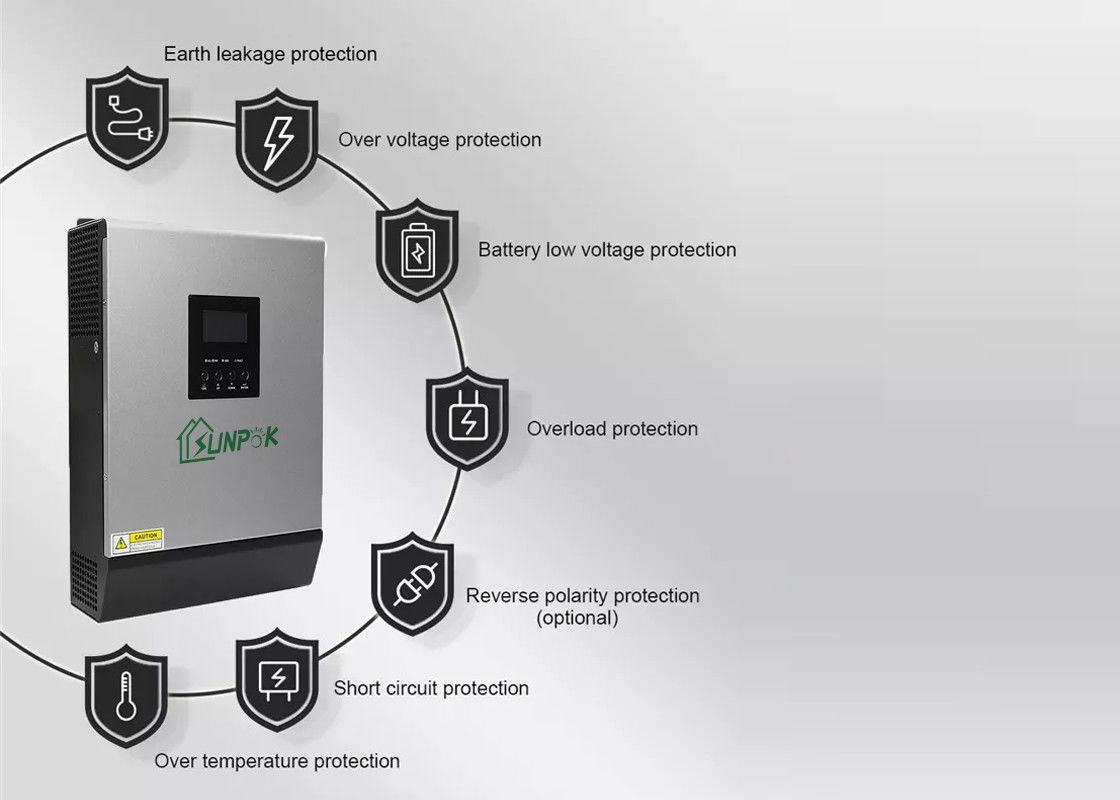

Intelligent protection, simple operation, and maintenance:



Various gear charging voltages, adaptable to different batteries



Multiple working modes: photovoltaic priority/mains power priority/battery priority



LCD can be externally introduced to meet the monitoring needs of different customers



Non-linear loads can be connected



Safe and reliable, comprehensive peace of mind:



Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact



Smart battery charger design to optimize battery performance



Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere





FAQ

Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.

Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.

Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.

Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.

Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.

Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.

If you have other questions, please add the contact information of our sales manager to understand, thank you!
