Spf3500es 5000es Off Grid Inverter 5000va 5000w Solar Inverter 100kw 150kw

Spf3500es 5000es Off Grid Inverter 5000va 5000w Solar Inverter 100kw 150kw

Off Grid Inverter 5000va

150kw Off Grid Inverter

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS-5500H

Contact Us
Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
5KW
Output Waveform:
Prue Sine Wave
Display:
LCD
Battery Voltage:
48V
Mounting Type:
Montita Muro
Warranty:
2 Years
Output Type:
Single, DUAL, Triple, Quad, Multiple, Three Phase
Waveform:
Pure Sine Wave
Highlight:

Off Grid Inverter 5000va

,

150kw Off Grid Inverter

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

SUNPOK Spf3500es 5000es Off Grid Inverter 5000va 5000w Solar Inverter 100kw 150kw
Best Off-Grid Inverters
Are you considering investing in an off-grid inverter for your home or business? Sunpok Energy’s range of off-grid inverters are some of the best in the business, and they come with a range of great features that set them apart from the competition. But what exactly can you expect from these high-quality inverters?

With Sunpok Energy’s off-grid inverters, you can experience what it feels like to have reliable, clean, and efficient energy wherever there’s a power outlet. These inverters offer unparalleled power accuracy, and they can be used to power any type of device, including laptops, TVs, lights, and small appliances. Sunpok Energy’s inverters are also incredibly simple to install and use, thanks to their user-friendly design.

If you’re looking for a reliable off-grid inverter that has all the features you need, the Sunpok Energy range will definitely meet your requirements. Whether you’re looking for the most affordable option or something with more benefits, Sunpok Energy guarantees quality. With Sunpok Energy’s inverters, you can expect excellent safety features, reliable performance, and a long lifespan.

Now that you know a bit more about Sunpok Energy’s off-grid inverters, it’s time to delve deeper. To help make the decision easier, why not take a look at the below comparison chart? It’s designed to provide you with a quick overview of the most important features, so you can decide which option is best for you.


Spf3500es 5000es Off Grid Inverter 5000va 5000w Solar Inverter 100kw 150kw 0


SUNPOK Off-Grid Off-Grid Inverter

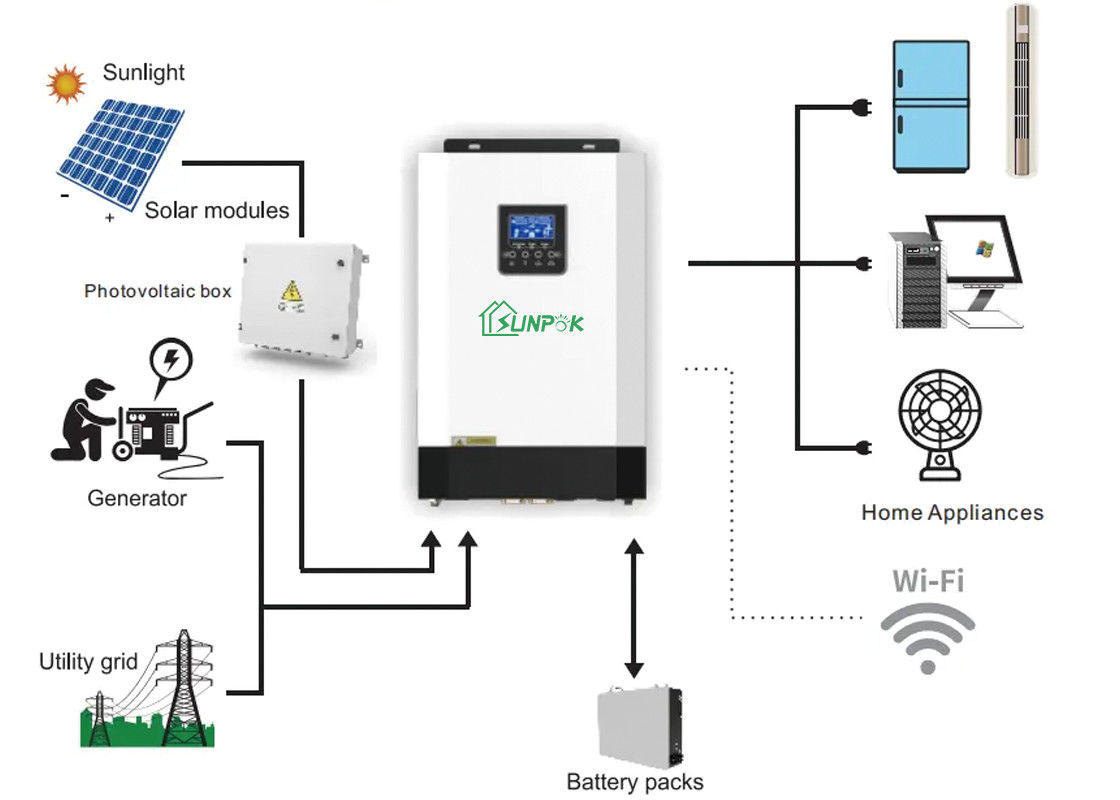

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.

ModelMPS-3500HMPS-5500H
Rated Capacity3500W5500W
Peak Power3500VA5500VA
INPUT
Voltage230VAC
Selectable Voltage Range90-280VAC(for home appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)230VAC+5%
Surge power7000VA11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) BAT to INV94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave formPure Sine Wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC61VDC
Maximum charge current80A80A
SOLAR CHARGER
MAX.PV Array Power5000W6000W
MPPT Range@ Operating Voltage120-500VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current110A
Maximum Efficiency98%
PHYSICAL
Dimension.D*W*H(mm)472*298*129
Net Weight (kgs)9.5kg10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature


-15°C to 60°C



Spf3500es 5000es Off Grid Inverter 5000va 5000w Solar Inverter 100kw 150kw 1


Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
