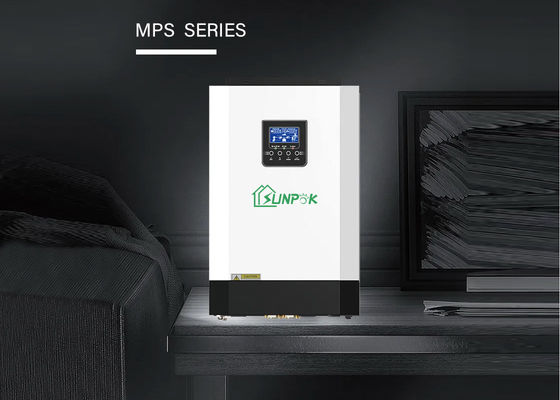

ODM 5kw Hybrid Off Grid Inverter 16kw Prue Sine Wave

ODM 5kw Hybrid Off Grid Inverter 16kw Prue Sine Wave

5kw Hybrid Off Grid Inverter

Sine Wave Hybrid Off Grid Inverter

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS-5500H

Contact Us
Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
5KW
Output Waveform:
Prue Sine Wave
Display:
LCD
Battery Voltage:
48V
Mounting Type:
Montita Muro
Warranty:
2 Years
OEM & ODM:
Avaiable
Output Type:
Single, DUAL, Triple, Quad, Multiple, Three Phase
Size:
According Customer Choosen Series Item
Highlight:

5kw Hybrid Off Grid Inverter

,

Sine Wave Hybrid Off Grid Inverter

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

Guang Zhou SUNPOK Inverter Technology Off Grid Hybrid 5kw Hybrid Inverter 16kw
Off-Grid Inverters for Remote Solar Power Systems
As the demand for renewable energy continues to grow, many businesses and homeowners are looking for reliable and efficient methods to harvest solar power. Sunpok Energy provides a unique and innovative solution with their Off-Grid Inverters for Remote Solar Power Systems.

The Sunpok Energy Off-Grid Inverters are an ideal solution for remote locations that are off the grid. This system enables the user to access solar power without the need for costly infrastructure and installation. Sunpok Energy's inverters are designed to convert the DC output from a solar panel into an AC current, allowing it to be utilized in areas without AC power outlets. The inverters are also designed to handle power surges and are extremely efficient, generating more power than traditional inverters while consuming less energy.

Not only is Sunpok Energy's system efficient, but it also has many features that make it incredibly safe and reliable. Its rugged, stainless steel enclosure ensures protection against water, dust, and other environmental factors. It also has integrated short-circuit protection and overload protection, preventing any damage to your equipment or circuit. Furthermore, the system has a variety of built-in safety features that protect the solar panels and users from potential hazards.

Sunpok Energy's Off-Grid Inverters are a great solution for those looking to maximize their energy efficiency and save money on energy bills. This system is an ideal choice for those living or working in remote or off-the-grid locations. Whether you're looking for a reliable source of power for your home or business, Sunpok Energy's Off-Grid Inverters offer a great solution. With its rugged stainless steel enclosure and advanced safety features, it ensures reliable and efficient power generation with minimal maintenance or risk.

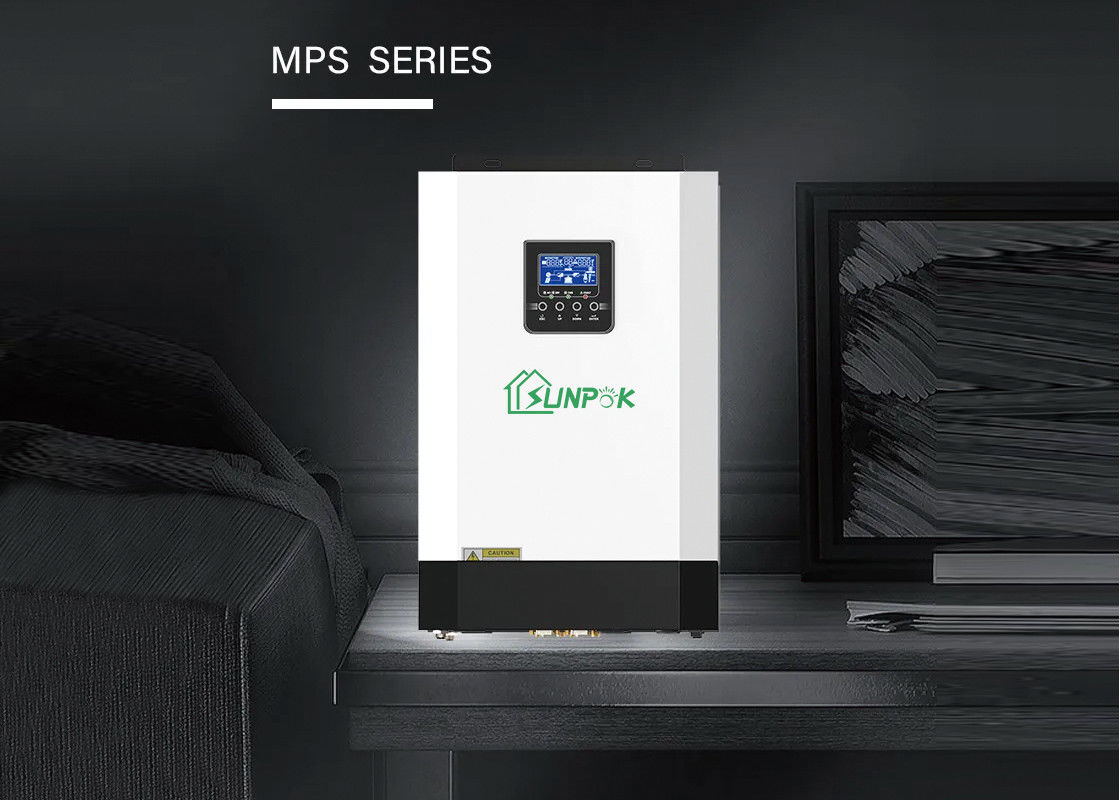

ODM 5kw Hybrid Off Grid Inverter 16kw Prue Sine Wave 0


SUNPOK Off-Grid Off-Grid Inverter

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.

ModelMPS-3500HMPS-5500H
Rated Capacity3500W5500W
Peak Power3500VA5500VA
INPUT
Voltage230VAC
Selectable Voltage Range90-280VAC(for home appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)230VAC+5%
Surge power7000VA11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) BAT to INV94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave formPure Sine Wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC61VDC
Maximum charge current80A80A
SOLAR CHARGER
MAX.PV Array Power5000W6000W
MPPT Range@ Operating Voltage120-500VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current110A
Maximum Efficiency98%
PHYSICAL
Dimension.D*W*H(mm)472*298*129
Net Weight (kgs)9.5kg10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature


-15°C to 60°C



ODM 5kw Hybrid Off Grid Inverter 16kw Prue Sine Wave 1


Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
