Off Grid Pure Sine Wave Watt Power Inverter 48v 6kva 6000es With Transfer Switch
Off Grid Solar Inverter, Off Grid Solar System
Sunpok Energy By providing customers with high-quality solar energy solutions that are easy to install and use, Sunpok helps homeowners and businesses achieve energy independence. Whether you need an off-grid solar system to power your home or business, or require a reliable inverter to manage your grid-connected solar installation, Sunpok Energy has the perfect solution for you.
With Sunpok, you can take advantage of the tremendous cost savings associated with solar Energy. By utilizing the sun’s energy, you can drastically reduce your monthly energy costs while eliminating your dependence on the electrical grid. Sunpok has the experience and technology to design and develop highly efficient off-grid solar systems and inverters. Their systems are designed to ensure maximum efficiency and performance, while keeping your energy costs to a minimum.
Sunpok Energy makes it easy to switch to using solar energy in your home or business. Whether you use an off-grid system or a grid-tied solar system, you can count on Sunpok’s reliable solutions to reduce your energy costs and keep you connected to the sun. With help from Sunpok’s knowledgeable team of experts, you can understand the intricate details of solar energy and make the most of your investment in solar power.
By choosing Sunpok Energy for your off grid solar system and inverter needs, you can take advantage of a whole host of features and benefits that only Sunpok Energy can provide. From expert design and installation services to advanced energy-saving technologies and reliable customer service, Sunpok has the expertise and experience to ensure you get the most out of your solar system.

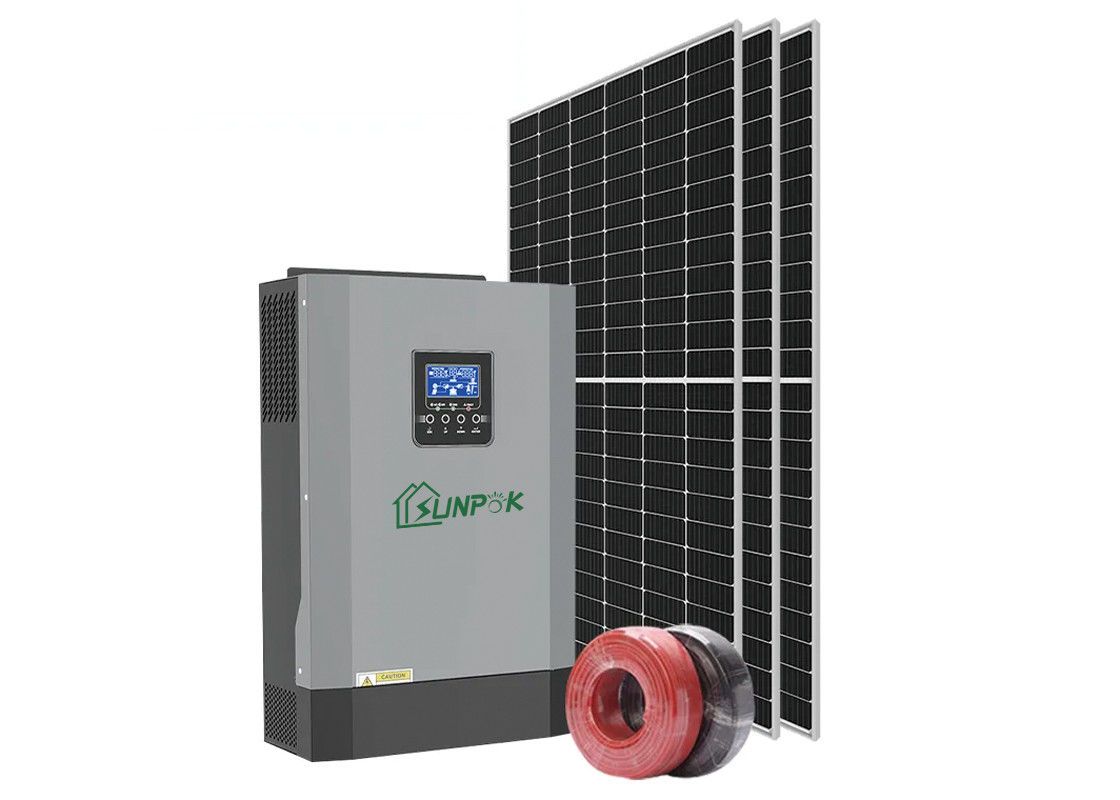

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers) 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
