10000w Inverte 48v Off Grid Solar Power Inverter Mppt Solar Charge Controller
Best Off Grid Inverters | Buyer’s Guide
Today’s market is filled with a variety of off grid inverters, making it a challenge to choose the best one for your energy needs. If you are seeking a reliable, cost efficient, and performance based solution, then you should look no further than Sunpok Energy. Sunpok Energy offers a wide selection of off grid inverters that are perfect for any remote energy application.
Sunpok Energy’s off grid inverters are designed with efficiency in mind, ensuring that your energy investments are wisely spent. Sunpok also offers high-efficiency solar panel compatibility which means that your system will be more cost-effective. With Sunpok Energy’s off grid inverters, you can be sure that your energy investments are in safe hands.
Sunpok Energy also provides a buyer’s guide that contains detailed information about each of their off grid inverters. This can help you understand the technical specifications of each product, so that you can make an informed decision as to which model best fits your unique needs. In addition, the buyer’s guide includes information on pricing, warranty, and installation.
Sunpok Energy understands the importance of quality and performance, which is why they make it a priority to ensure that their products are nothing short of perfect. They strive to provide the best off grid inverters that meet the highest standards of quality and performance. With their off grid inverters, you can rest assured that your residential and commercial energy needs are in good hands.
SUNPOK Off-Grid Off-Grid Inverter

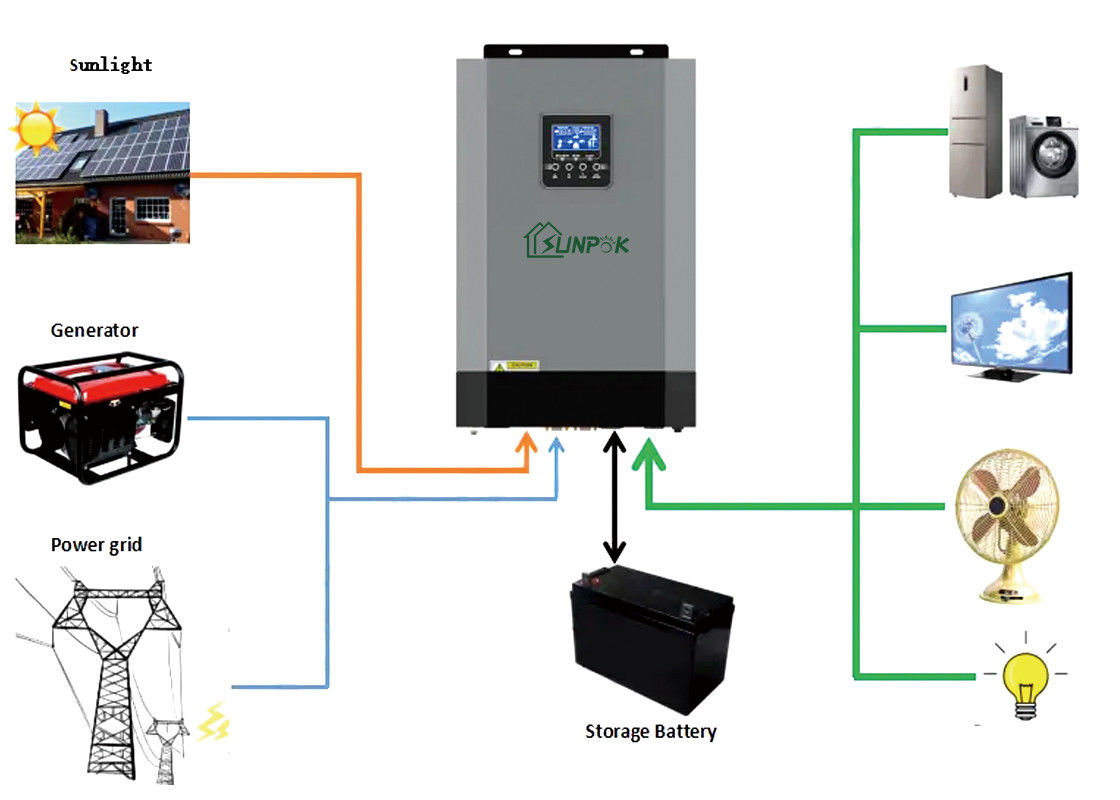

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers) 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
