Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
MPS-3500H
Video
Video
Video

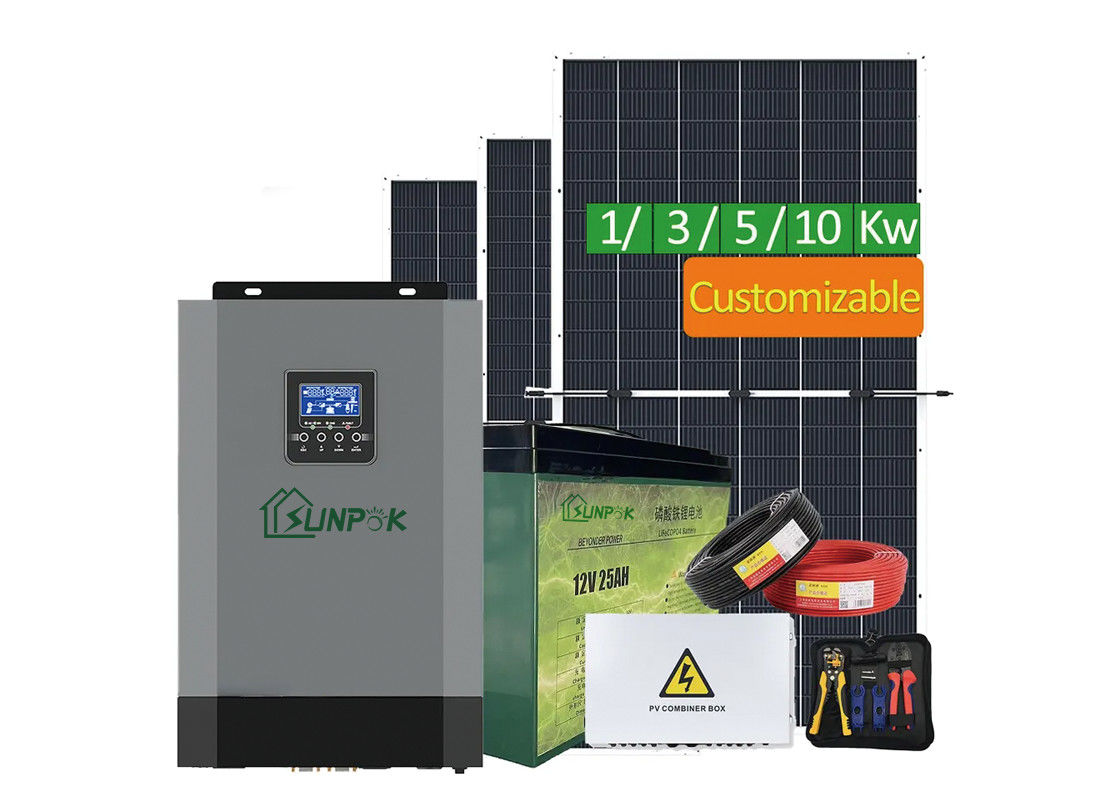

Home Use 5kw Photovoltaic System Solar Power System off grid inverter installation
How to Choose the Best Off-Grid Inverter
Are you considering going off-grid and looking for the best inverter for your needs? Look no further than Sunpok Energy!
At Sunpok Energy, we understand the needs of those off-grid, that’s why we offer an extensive selection of off-grid inverters suitable for various types of homes and applications. From small to large scale projects, our inverters are designed to provide the day-to-day energy needs of off-gridders.
Sunpok Energy’s off-grid inverters offer many advantages such as clean and efficient power generation, low sound levels, and great flexibility. Furthermore, all of our inverters are 100% compatible with other home appliances, making them the perfect choice for all your off-grid needs.
In addition, our inverters are designed for maximum efficiency and dependability, ensuring your home or office remains powered for years to come. Our staff of trained and certified professionals can help you to choose the best inverter for your homes, and offer complete installation services as well.
So if you are looking for a reliable and efficient off-grid inverter, look no further than,Sunpok Energy! Our selection of inverters offers the perfect balance of quality, performance, and reliability. Let us help you power your off-grid home today.

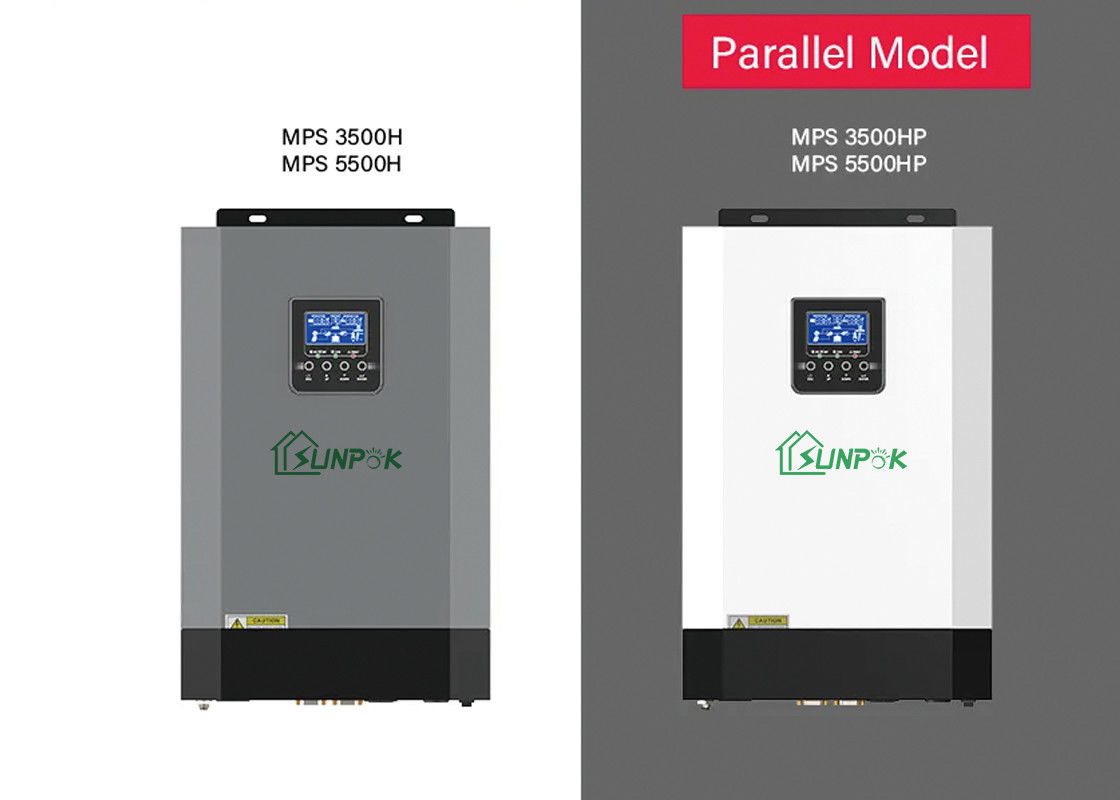

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers) 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
