Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
MPS-3500H
Video
Video
Video
Wifi Low Frequency 24v 48v Mppt Off Grid Solar Power Hybrid Inverter Price
Install and Wire a Off-Grid Inverter
Off-grid power solutions offer a wide variety of advantages, such as increased reliability, lower electricity bills and independence from the grid. Sunpok Energy's Off-Grid Inverter makes these advantages even more accessible, with a simple install process and detailed step-by-step instructions.
Whether you’re an experienced electrician or a beginner in the field, Sunpok Energy’s Off-Grid Inverter is simple to install and can save you money over the long run. All you need to do is follow the comprehensive step-by-step instructions, which provide detailed information on how to select, install and connect the components of the inverter. This means electricians and DIYers alike can experience the reliability and efficiency of an off-grid power system.
With Sunpok Energy’s Off-Grid Inverter, you can enjoy reliable, renewable power for your home or business. The inverter is energy-efficient, using power only when it’s needed. The inverter also monitors your energy usage, allowing you to make smart decisions about when and how to use electricity.
Off-grid power systems also offer a degree of independence from the electrical grid. With the Sunpok Energy Off-Grid Inverter, you can rest assured that in the event of an outage, your home or business will still be powered. This means you can avoid costly and inconvenient outages, saving money, time and effort.
If you’re looking for a reliable, renewable energy solution for your home or business, Sunpok Energy’s Off-Grid Inverter has you covered. With our easy to understand installation guides and a helpful customer service team, you can quickly and easily set up an off-grid power system that will match your energy needs.

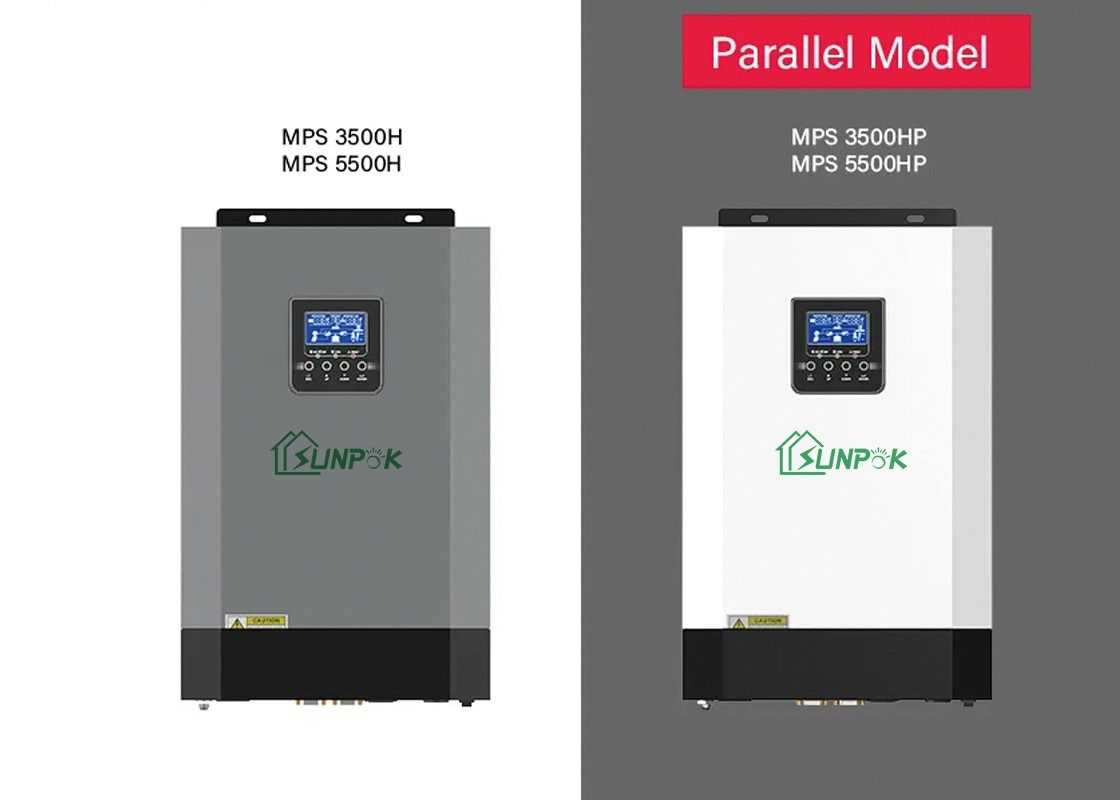

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers) 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
