3kw 5kw Off Grid Hybrid Solar Inverter With Mppt Charge Controller

3kw 5kw Off Grid Hybrid Solar Inverter With Mppt Charge Controller

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS-3500H

Contact Us
Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
10KW
Output Waveform:
Prue Sine Wave
Display:
LCD
Battery Voltage:
48V
Type:
DC/AC Inverters
Warranty:
24 Months, 24 Months
OEM & ODM:
Avaiable
Output Wave Form:
Pure Sine Wave
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

Sunpok Energy Off-Grid Batteries: Benefits, Types & Considerations



Gone are the days when you depended solely on the electric grid to provide power to you. With the increasing need for energy independence and the increasing availability of renewable energy sources, it’s becoming increasingly important to look into sunpok energy and off-grid battery options available to households and businesses.



Sunpok energy is an innovative new energy solution that harnesses the sun’s energy and converts it into electrical power. The beauty of sunpok energy is that it’s durable, sustainable and renewable. By utilizing this technology you will have an unlimited and clean power source available at your disposal. Sunpok energy is also much more affordable than traditional electric grid energy sources, and offers you more control and independence over your energy supplies.



In addition to sunpok energy, consider investing in off-grid batteries. Off-grid systems refer to energy stored in the form of batteries that you can access without relying on the electric grid. These batteries can be used to power your home or business when the grid goes down, ensuring you’ll always have access to the power you need.



There are several types of off-grid batteries available, including deep cycle, gel cell and lithium ion. You should take time to consider which type is right for you and your particular energy needs. In addition, consider investing in a battery charger, a solar panel or two, and some electrical cables to connect them.



The benefits of utilizing sunpok energy and off-grid batteries range from energy independence to cost-effectiveness. With an off-grid system, you’ll have greater access to renewable energy sources, while also increasing your ability to remain self-sufficient in the event of a power outage or other emergency. By relying on these energy sources, you can save money on electric bills, reduce your carbon footprint, and have more control over your energy supplies. With the right off-grid battery technology, you’ll also enjoy smoother and more reliable energy services, even in areas where power outages may occur.



Finally, investing in an off-grid system requires a certain amount of preparation and research. Read up on the latest energy trends to determine which type of off-grid energy might be right for you. Consider your budget and make sure you can afford the upfront costs associated with the system, such as the solar panels, batteries, and any installation expenses. Be sure to also consult a professional to ensure the safety of the system and to ensure that you’re making the most efficient use of your energy.

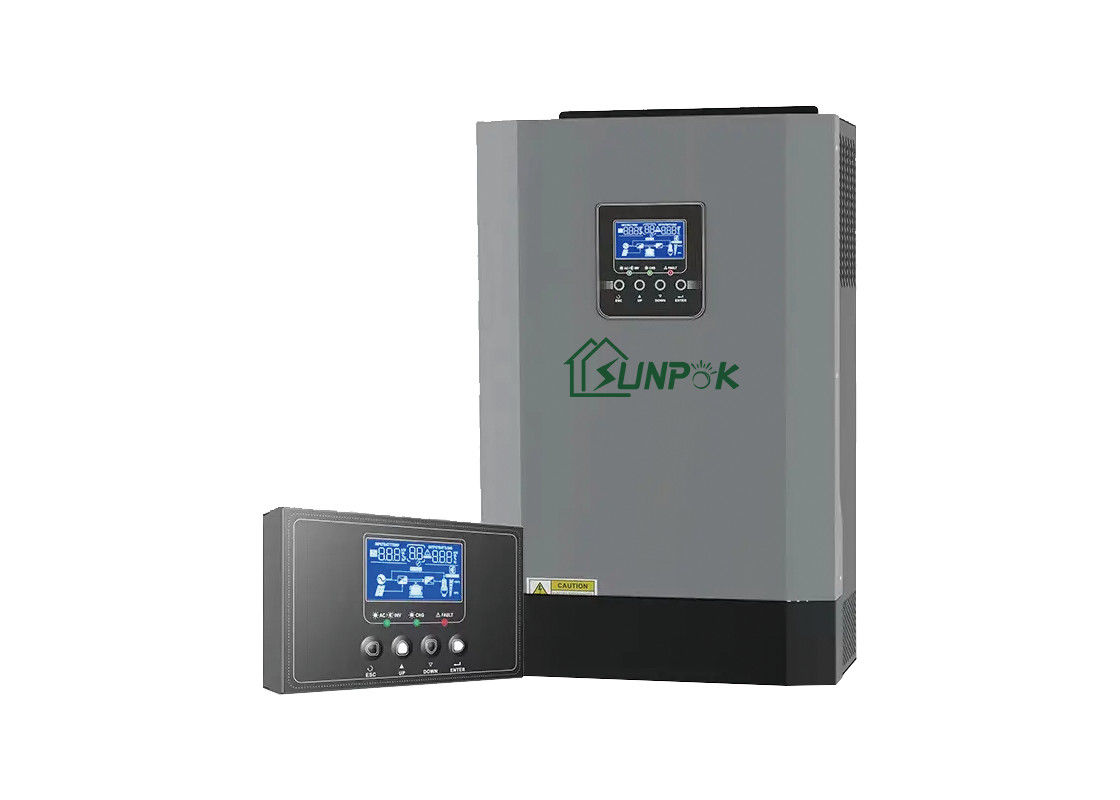

3kw 5kw Off Grid Hybrid Solar Inverter With Mppt Charge Controller 0


SUNPOK Off-Grid Off-Grid Inverter

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.


Model MPS-3500H MPS-5500H
Rated Capacity 3500W 5500W
Peak Power 3500VA 5500VA
INPUT
Voltage 230VAC
Selectable Voltage Range 90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC+5%
Surge power 7000VA 11000VA
Efficiency(Peak) PV to INV 97%
Efficiency(Peak) BAT to INV 94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 31VDC 61VDC
Maximum charge current 80A 80A
SOLAR CHARGER
MAX.PV Array Power 5000W 6000W
MPPT Range@ Operating Voltage 120-500VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Charging Current 110A
Maximum Efficiency 98%
PHYSICAL
Dimension.D*W*H(mm) 472*298*129
Net Weight (kgs) 9.5kg 10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C



3kw 5kw Off Grid Hybrid Solar Inverter With Mppt Charge Controller 1


Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

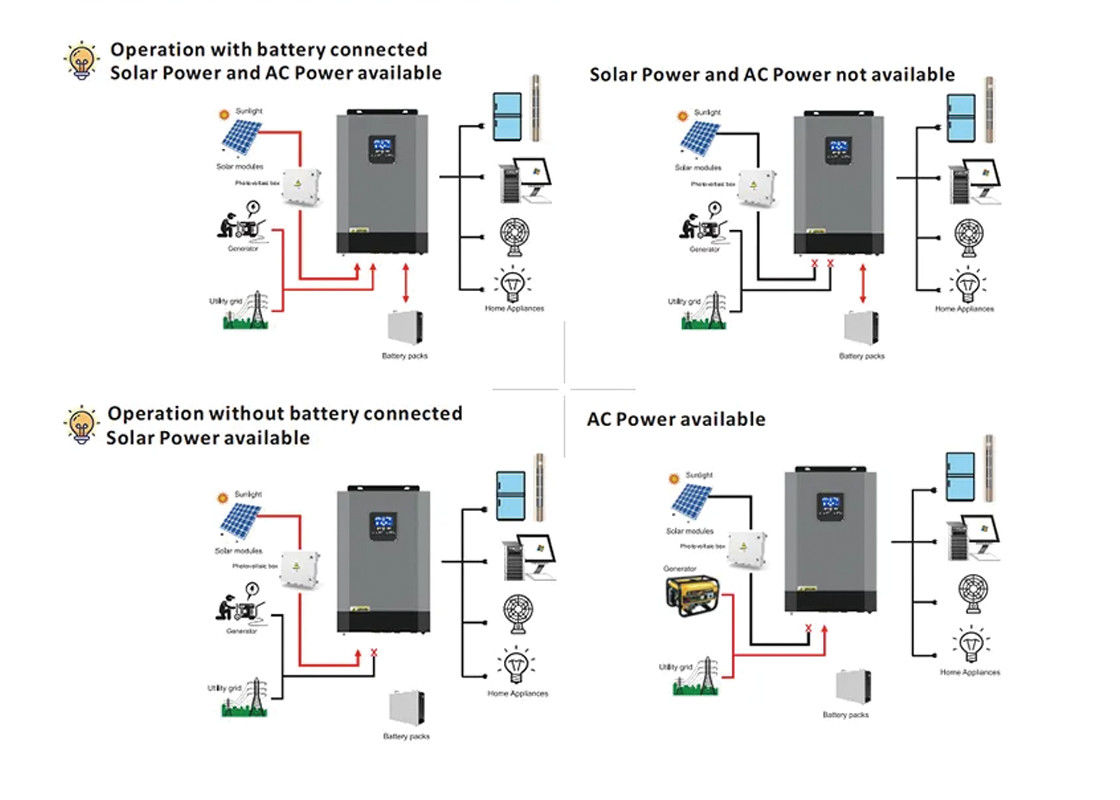

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
