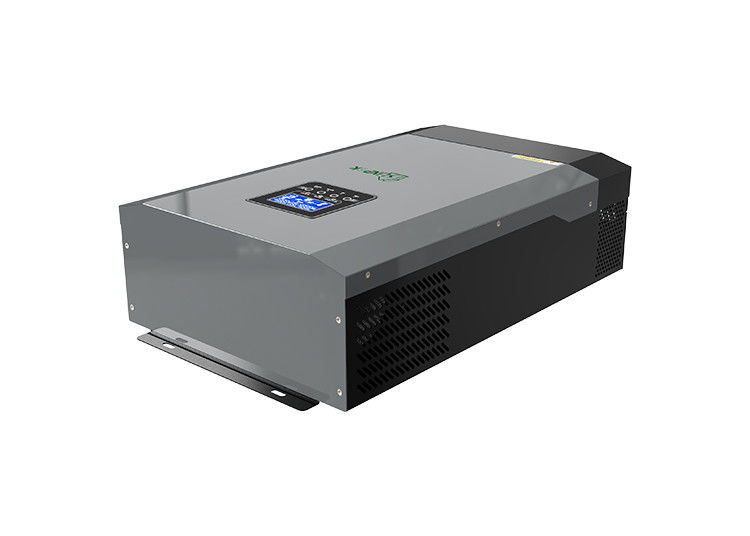

5kw Dc To Ac Pure Sine Wave Power Inverter Off Grid Solar Inverter

5kw Dc To Ac Pure Sine Wave Power Inverter Off Grid Solar Inverter

5kw Pure Sine Wave Power Inverter

Off Grid Sine Wave Power Inverter

Dc To Ac Off Grid Inverter

Place of Origin:

China

Brand Name:

SUNPOK

Certification:

CE MSDS UN38.3

Model Number:

MPS-5500H

Contact Us
Request A Quote
Product Details
Product Name:
230V 5Kw 48V Off Grid Inverter
Rated Power:
10KW
Output Waveform:
Prue Sine Wave
Display:
LCD
Battery Voltage:
48V
Type:
DC/AC Inverters
Warranty:
24 Months, 24 Months
OEM & ODM:
Avaiable
Output Wave Form:
Pure Sine Wave
Highlight:

5kw Pure Sine Wave Power Inverter

,

Off Grid Sine Wave Power Inverter

,

Dc To Ac Off Grid Inverter

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 454 /Pcs
Packaging Details
Carton
Delivery Time
5-10 Day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Unit Per Month
Product Description

5kwdc To Ac Pure Sine Wave Power Inverter Off Grid Solar Inverter
Off-Grid Inverters - Everything You Need to Know
Sunpok Energy, the leading provider of off-grid inverters. With solar comes the need for reliable power, and that is where Sunpok Energy comes in. But what exactly is an off-grid inverter and what do they do?

An off-grid inverter is essentially a device that takes solar energy and converts it into electricity for your home or business. Sunpok Energy specializes in manufacturing and offering inverters that give you quality and reliability for an economical price. Off-grid inverters are designed to provide a renewable and reliable source of power for those not tied to grid power, such as rural areas and cabins.

Sunpok Energy’s off-grid inverters are ideal because they provide maximum power and durability while withstanding the harshest conditions. These inverters use advanced designs that offer superior efficiency and controllability that enables users to reap the maximum benefit of their solar power. Sunpok Energy also offers inverters that are equipped with accessories including battery monitors and solar trackers that keep track of your solar system’s performance.

Overall, if you’re looking to make the switch to renewable energy sources, Sunpok Energy’s off-grid inverters are the perfect choice. Not only do they provide you with reliable and efficient power, but you can also have peace of mind knowing that your system is built to last in any environment. Whether you’re looking for a reliable source of power for your cabin or you need a dependable system for your RV, solar power inverters from Sunpok Energy can get you where you need to go.


5kw Dc To Ac Pure Sine Wave Power Inverter Off Grid Solar Inverter 0


SUNPOK Off-Grid Off-Grid Inverter

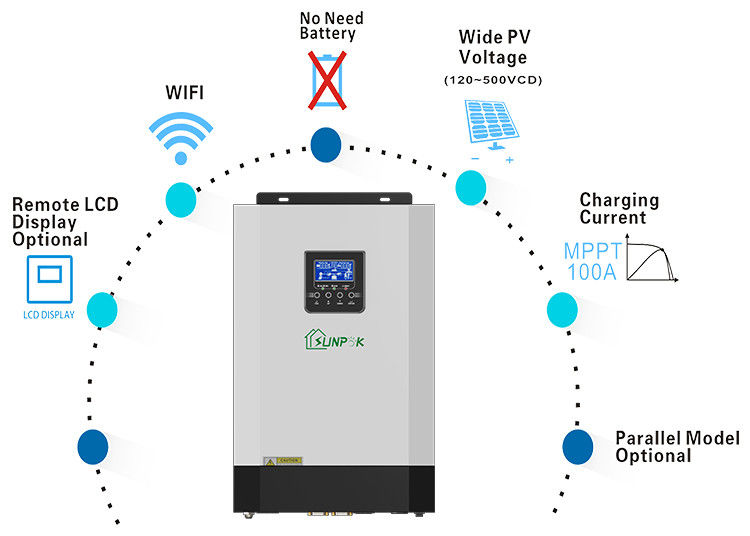

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.



ModelMPS-3500HMPS-5500H
Rated Capacity3500W5500W
Peak Power3500VA5500VA
INPUT
Voltage230VAC
Selectable Voltage Range90-280VAC(for home appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)230VAC+5%
Surge power7000VA11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) BAT to INV94%
Transfer Time

10ms (for personal computers)
20ms(for home appliances)

Wave formPure Sine Wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC61VDC
Maximum charge current80A80A
SOLAR CHARGER
MAX.PV Array Power5000W6000W
MPPT Range@ Operating Voltage120-500VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current110A
Maximum Efficiency98%
PHYSICAL
Dimension.D*W*H(mm)472*298*129
Net Weight (kgs)9.5kg10.5kg
Communication Interface

RS485/RS232(Standard)
LCD remote/WIFI(Optional)

OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature-15°C to 60°C

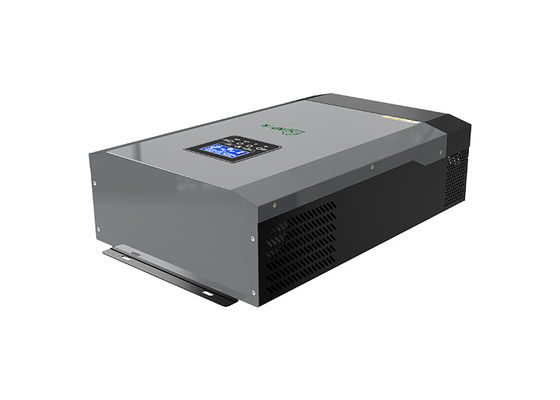

5kw Dc To Ac Pure Sine Wave Power Inverter Off Grid Solar Inverter 1


Features

Efficient power generation with higher income:

1.5 times overload output (200ms), resist the impact of instantaneous load

Wide voltage input range, early start and late stop, longer lasting power generation

Photovoltaic controller power upgrade can be connected to 5kW

MPPT has a wide voltage range and can adapt to various crystalline silicon components

Support mains bypass fast charging

Intelligent protection, simple operation, and maintenance:

Various gear charging voltages, adaptable to different batteries

Multiple working modes: photovoltaic priority/mains power priority/battery priority

LCD can be externally introduced to meet the monitoring needs of different customers

Non-linear loads can be connected

Safe and reliable, comprehensive peace of mind:

Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact

Smart battery charger design to optimize battery performance

Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere


FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
