Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
MPS-3500H
Video
Video
Video
Off Grid Inverter 8kw 10kw 12kw Standard Three-phase Hybrid Solar Inverter
Off-Grid Inverter: merit -Solar Solutions
Sunpok Energy and Off-Grid Inverter: merit
The primary benefit to using Sunpok’s off-grid inverters is their ability to provide cost effective power solutions. Since they are off-grid, they do not require a connection to the electrical grid. This makes them ideal for remote areas with limited or unreliable access to the power grid. Additionally, these systems are designed to be highly flexible and can be configured to meet the specific needs of each application.
Overall, Sunpok Energy and its off-grid inverters are an excellent choice for people looking for a reliable and efficient energy source in remote locations. They are relatively inexpensive, require minimal maintenance, and can be configured to meet the energy requirements of the area. With these advantages, Sunpok’s off-grid inverters can be a great solution to many people’s energy needs.
SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers)
90-280VAC(for home appliances) |
|
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time |
10ms (for personal computers) 20ms(for home appliances) |
|
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface |
RS485/RS232(Standard) LCD remote/WIFI(Optional) |
|
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |

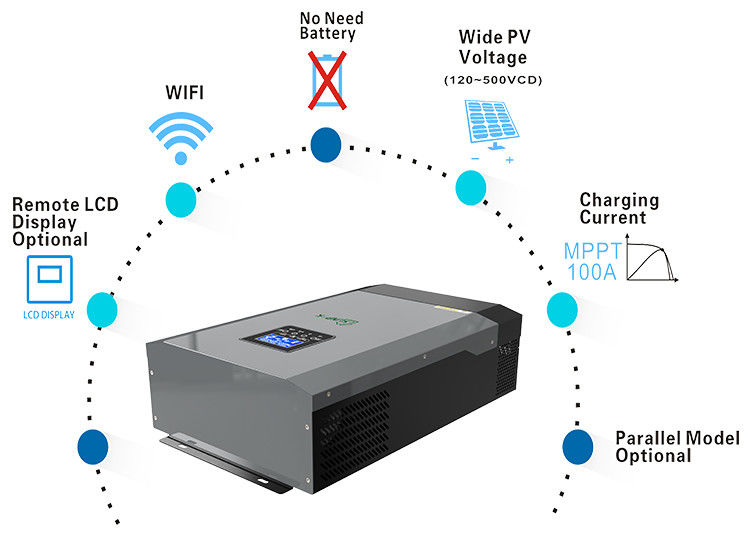

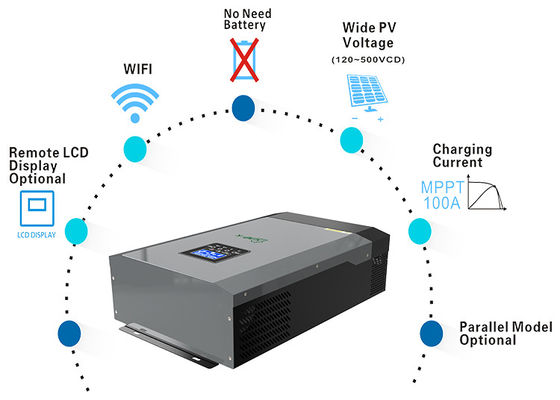

Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
