Best Off-Grid Inverter: Different Types, Benefits & Drawbacks
Sunpok Energy offers the best off-grid inverters for the money, providing reliable power and convenience to those who live or work off the grid. With our quality selection of inverters, you can take your home or business off-grid and enjoy long-term savings on power costs. Sunpok Energy has a wide range of off-grid inverters available, from small, lightweight systems to large, powerful ones, providing you with the best off-grid power supply for your needs.
Our off-grid inverters can be used for any type of application. From simple residential projects to more complex commercial installations, we have an off-grid inverter to meet every need. Our off-grid inverters are designed to meet both technical and endurance requirements, while remaining user friendly and cost-effective. We offer a variety of options so that you can easily find the right off-grid inverter for your specific project.
Off-grid inverters are an attractive option for residential and commercial applications because they are easily adjustable and provide a higher level of reliability compared to other types of power systems. Additionally, they are more affordable than grid-connected systems and typically require less maintenance and installation time. Off-grid inverters also allow you to save energy and money by providing you with the flexibility to choose when and how much power you use.
At Sunpok Energy, our goal is to provide the best off-grid inverters for your particular needs. We strive to offer products that are top quality, reliable, and efficient. Our off-grid inverters are designed to provide you with the power you need without adding unnecessary strain or expenses to your budget. Our selection includes a variety of sizes and features, from small remote power systems to robust, large-scale systems capable of powering your entire home or business.

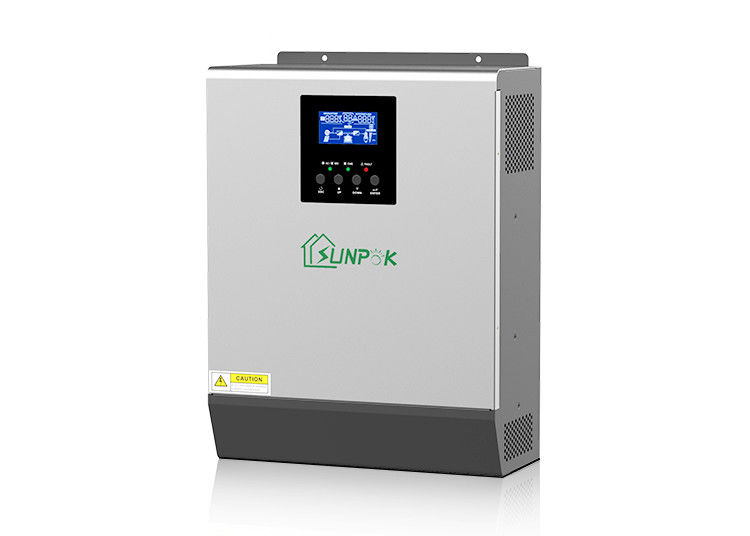

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS1K-24 | MPS1K-48 | MPS2K-24 | MPS 3K-24 | MPS 3K-48 | MPS 4K | MPS 5K | |
| Rated Capacity | 1000VA800W | 1000VA/1000W | 2000VA1600W3 | 3000VA2400W | 3000VA2400W | 4000VA/3200W | 5000VA4000W | |
| INPUT | ||||||||
| Voltage | 120 VAC or 230 VAC | 230VAC | ||||||
| Selectable Voltage Range |
95-140VACor 170-280VAC(ForPersonal Computers) 65-140VACor90-280 VAC(ForHomeAppliances)
|
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) |
||||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |||||||
| OUTPUT | ||||||||
| AC Voltage Regulation (Batt.Mode) |
110/120 VAC 5%(User selectable)or 230VAC 5% |
230VAC+5% | ||||||
| Surge power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |||
| Efficiency(Peak) | 90%-93% | 93% | ||||||
| Transfer Time |
10ms (for personal computers) 20ms(for home appliances) |
|||||||
| Wave form | Pure Sine Wave | |||||||
| BATTERY & AC CHARGER | ||||||||
| Battery Voltage | 24VDC | 48 VDC | 24 VDC | 24VDC | 48VDC | 48VDC | ||
| Floating Charge Voltage | 27VDC | 54VDC | 27VDC | 27VDC | 54VDC | 54 VDC | ||
| Overcharge Protection | 31VDC | 62VDC | 31VDC | 31VDC | 62VDC | 60 VDC | ||
| Maximum Charge Current | 0Aor10A/20A* | 0Aor 10A/15A* | 20Aor 30A | 20Aor30A | 10Aor15A | 60A | ||
| SOLAR CHARGER | ||||||||
| Maximum PV Array Power | 600 W | 900 W | 600 W | 600W | 900W | 3000 W | ||
| MPPT Range@ Operating Voltage |
30VDC~ 66VDC |
60VDC~ 80VDC |
30VDC~ 66VDC |
30VDC~ 66VDC |
60VDC~ 88VDC |
60VDC~ 115VDC |
||
| Maximum PV Array OpenCircuit Voltage | 75VDC | 75VDC | 75VDC | 75VDC | 102VDC | 145VDC | ||
| Maximum Charging Current | 25A | 20A | 25A | 25A | 18A | 60A | ||
| Maximum Efficiency | 98% | |||||||
| Standby Power Consumption | 2W | |||||||
| PHYSICAL | ||||||||
| Dimension.D*W*H(mm) | 128 x272 x 355 | |||||||
| Net Weight (kgs) | 7.4 | 7.6 | 8.0 | 12.5 | 13.5 | |||
| Communication Interface |
RS485/RS232(Standard) LCD remote/WIFI(Optional) |
|||||||
| OPERATING ENVIRONMENT | ||||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||
| Operating Temperature | 0°C-55°C | |||||||
| Storage Temperature | -15°C-60°C |
|||||||
| Product specifications are subject to change without further notice. | ||||||||
| MODEL | MPS1K-24 | MPS1K-48 | MPS 2K-24 | MPS 3K-24 | MPS 3K-48 | MPS 4K | MPS5K | |
| Inverter Power | 800W | 1000W | 1600W | 2400W | 2400W | 3200W | 4000W | |
| Pmax. generated from solarcharger | 25Amp,600W | 20Amp,900W | 25Amp,600W | 20Amp,900W | 20Amp,900W |
60Amp, 3000W |
60Amp, 3000W |
|
| Best Panel Configuration |
500Wp (250Wp x 2pcs) |
1000Wp (250Wp x 2pcs) |
500Wp (250Wp x 2pcs) |
500Wp (250Wp x 2pcs) |
1500Wp (250Wp x 6pcs) |
3000Wp (250Wpx12pcs) |
3000Wp (250Wpx12pcs) |
|

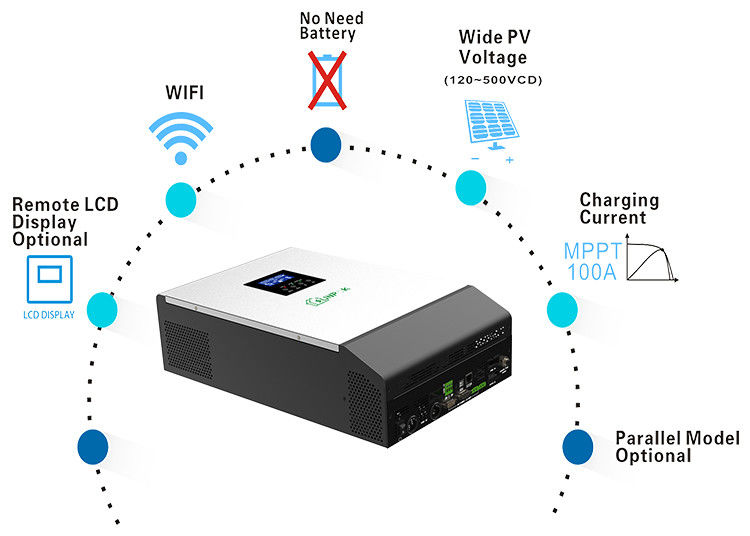

Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
