Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
MPS-5500H
Video
Video
Video

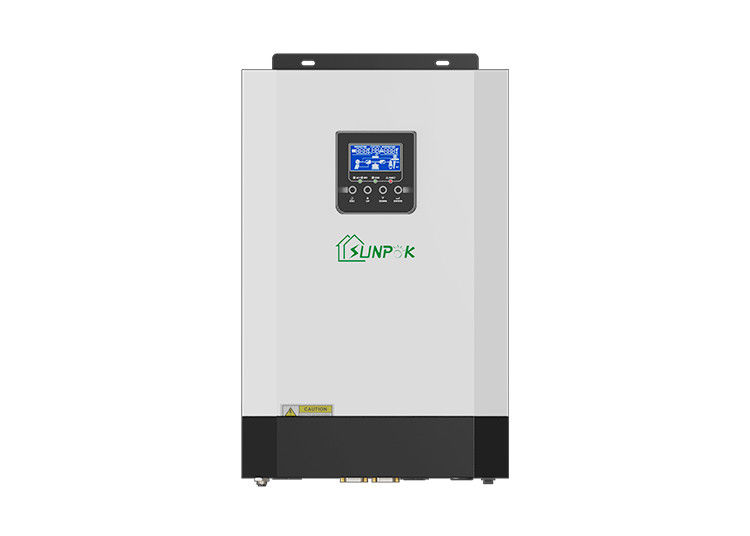

SUNPOK Solar Hybrid Inverter 5kw 5kva 48v Off Grid Inverter
Off-Grid Inverters: Pick the Right Model for Your Home Solar System
Sunpok Energy is proud to present our range of off-grid inverters, designed to provide your home solar system with the power and efficiency it needs. Our state-of-the-art inverters feature advanced technology that allows them to operate independent of your traditional utility grid. With the efficient and reliable off-grid inverters from Sunpok Energy, you will be able to enjoy clean and affordable energy.
Whether you are a homeowner looking for a reliable energy source that won’t break your budget or you are a professional seeking an alternative energy source, our off-grid inverters are sure to satisfy. Our inverters are highly efficient, allowing them to generate up to 85% of their rated power output. This means you don’t have to worry about your system running out of juice halfway through a sunny day.
With the different models available, you can easily pick the right off-grid inverter to suit your specific needs. From our high-powered 10kW systems to our lightweight 1kW units, you will find the perfect solution for your application. Plus, all of our models are designed to power a variety of solar panels, making installation and setup a breeze.
For those who want a comprehensive and cost-effective alternative energy solution, purchasing a off-grid inverter from Sunpok Energy is a great option. We offer consistent and reliable power generation, plus easy installation and setup. Plus, our models are backed by long-term warranty, so you can rest assured that your investment is secure.
So don’t wait, contact us today to learn more about our off-grid inverter solutions and see how we can help you power your home or business with solar energy.
SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |

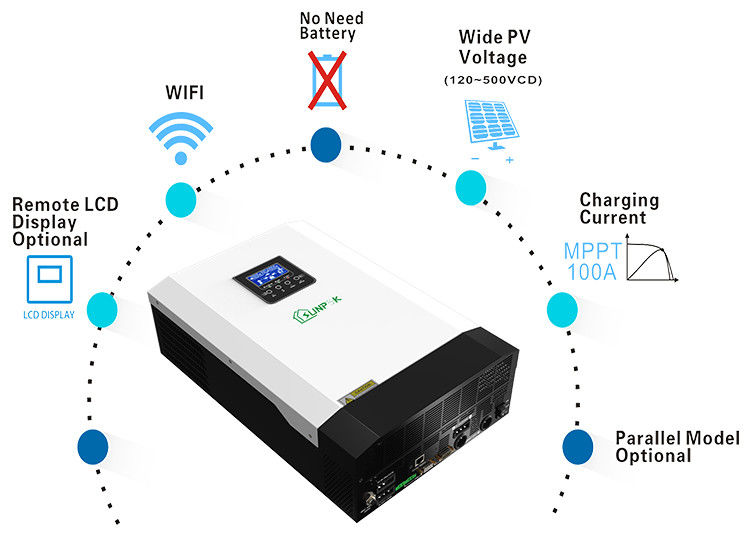

Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
