Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
MPS 3K
Video
Video
Video
Off Grid Inverter: Choose The Best For Your Solar System
Are you searching for an effective way to maximize the energy efficiency of your home?
Sunpok Energy offers a wide range of products, from solar panel systems to solar batteries. You can use their pre-configured solar panel kits to make your home energy efficient and reduce your electric bills. The solar panels come in sizes that are suitable for small to large properties, meaning you can tailor the size and installation of your system depending on your specific needs. With Sunpok Energy, you also get a more efficient charging process—meaning that your solar batteries will last longer and get more out of their charge, allowing you to generate more power and save even more money.
On the other hand, Off Grid Inverters are all-in-one power solutions, providing a way to capture and convert solar energy directly into usable electricity. Inverters come in a range of sizes, so you can choose the one that is the most suitable for your needs. This includes both single and three-phase inverters, which are suitable for connecting single or three-phase household appliances. Additionally, off-grid inverters come with a range of configuration options and protection circuits, making them ideal for people who want to install a system that is tailored to their individual needs.
Both Sunpok Energy and Off Grid Inverters are reliable and efficient ways to get solar energy, and they will help you save money on your electricity bills in the long run. The main difference between them is the way they capture and convert energy. Sunpok Solar Cells are the most efficient and cost-effective option, while off-grid inverters are designed to be the most flexible and versatile type of system. So, depending on your needs and budget, you can choose the system that best suits your off-grid energy needs.
SUNPOK Off-Grid Off-Grid Inverter

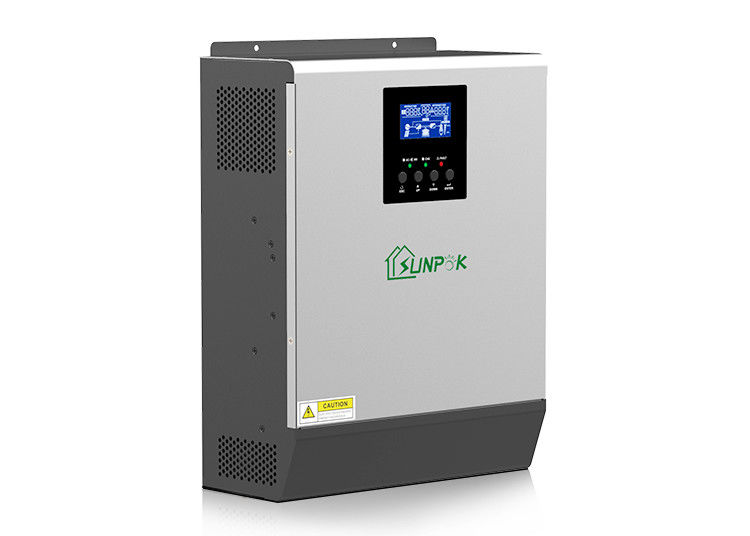

Sunpok 5Kw single-phase high-frequency off-grid inverter is suitable for areas without power, nomadic areas, communication base stations, areas with unstable power, islands, border posts, scenic management offices, newsstands, battery packs for battery manufacturers, etc. Equipped with LED display, supports USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and high-cost performance.
| Model | MPS1K-24 | MPS1K-48 | MPS2K-24 | MPS 3K-24 | MPS 3K-48 | MPS 4K | MPS 5K | |
| Rated Capacity | 1000VA800W | 1000VA/1000W | 2000VA1600W3 | 3000VA2400W | 3000VA2400W | 4000VA/3200W | 5000VA4000W | |
| INPUT | ||||||||
| Voltage | 120 VAC or 230 VAC | 230VAC | ||||||
| Selectable Voltage Range |
95-140VACor 170-280VAC(ForPersonal Computers) 65-140VACor90-280 VAC(ForHomeAppliances)
|
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) |
||||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |||||||
| OUTPUT | ||||||||
| AC Voltage Regulation (Batt.Mode) |
110/120 VAC 5%(User selectable)or 230VAC 5% |
230VAC+5% | ||||||
| Surge power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |||
| Efficiency(Peak) | 90%-93% | 93% | ||||||
| Transfer Time |
10ms (for personal computers) 20ms(for home appliances) |
|||||||
| Wave form | Pure Sine Wave | |||||||
| BATTERY & AC CHARGER | ||||||||
| Battery Voltage | 24VDC | 48 VDC | 24 VDC | 24VDC | 48VDC | 48VDC | ||
| Floating Charge Voltage | 27VDC | 54VDC | 27VDC | 27VDC | 54VDC | 54 VDC | ||
| Overcharge Protection | 31VDC | 62VDC | 31VDC | 31VDC | 62VDC | 60 VDC | ||
| Maximum Charge Current | 0Aor10A/20A* | 0Aor 10A/15A* | 20Aor 30A | 20Aor30A | 10Aor15A | 60A | ||
| SOLAR CHARGER | ||||||||
| Maximum PV Array Power | 600 W | 900 W | 600 W | 600W | 900W | 3000 W | ||
| MPPT Range@ Operating Voltage |
30VDC~ 66VDC |
60VDC~ 80VDC |
30VDC~ 66VDC |
30VDC~ 66VDC |
60VDC~ 88VDC |
60VDC~ 115VDC |
||
| Maximum PV Array OpenCircuit Voltage | 75VDC | 75VDC | 75VDC | 75VDC | 102VDC | 145VDC | ||
| Maximum Charging Current | 25A | 20A | 25A | 25A | 18A | 60A | ||
| Maximum Efficiency | 98% | |||||||
| Standby Power Consumption | 2W | |||||||
| PHYSICAL | ||||||||
| Dimension.D*W*H(mm) | 128 x272 x 355 | |||||||
| Net Weight (kgs) | 7.4 | 7.6 | 8.0 | 12.5 | 13.5 | |||
| Communication Interface |
RS485/RS232(Standard) LCD remote/WIFI(Optional) |
|||||||
| OPERATING ENVIRONMENT | ||||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||
| Operating Temperature | 0°C-55°C | |||||||
| Storage Temperature | -15°C-60°C |
|||||||
| Product specifications are subject to change without further notice. | ||||||||
| MODEL | MPS1K-24 | MPS1K-48 | MPS 2K-24 | MPS 3K-24 | MPS 3K-48 | MPS 4K | MPS5K | |
| Inverter Power | 800W | 1000W | 1600W | 2400W | 2400W | 3200W | 4000W | |
| Pmax. generated from solarcharger | 25Amp,600W | 20Amp,900W | 25Amp,600W | 20Amp,900W | 20Amp,900W |
60Amp, 3000W |
60Amp, 3000W |
|
| Best Panel Configuration |
500Wp (250Wp x 2pcs) |
1000Wp (250Wp x 2pcs) |
500Wp (250Wp x 2pcs) |
500Wp (250Wp x 2pcs) |
1500Wp (250Wp x 6pcs) |
3000Wp (250Wpx12pcs) |
3000Wp (250Wpx12pcs) |
|

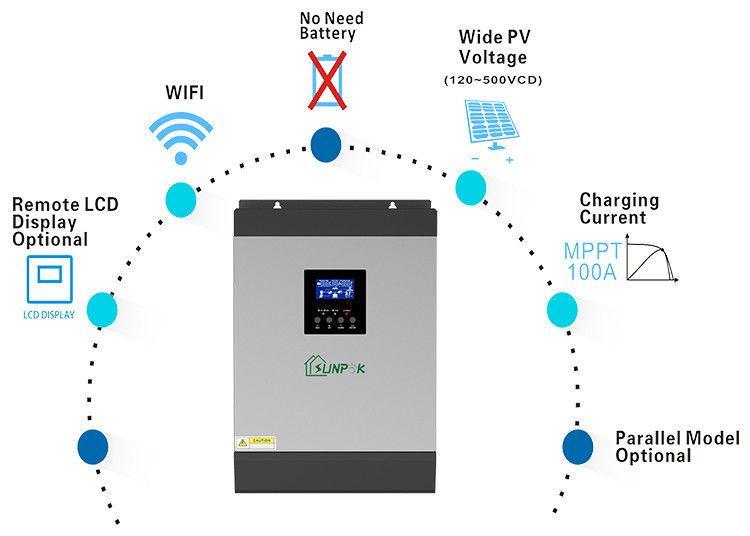

Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of instantaneous load
Wide voltage input range, early start and late stop, longer lasting power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power priority/battery priority
LCD can be externally introduced to meet the monitoring needs of different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
