Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
SP-OF-10KW
Off Grid Solar Power Systems: A Comprehensive Guide
An off-grid solar power system is a stand-alone system that generates electricity using solar panels and stores it in batteries for use when the sun is not shining. It is designed for homes, businesses, or communities that are not connected to the electrical grid and need an independent source of power.

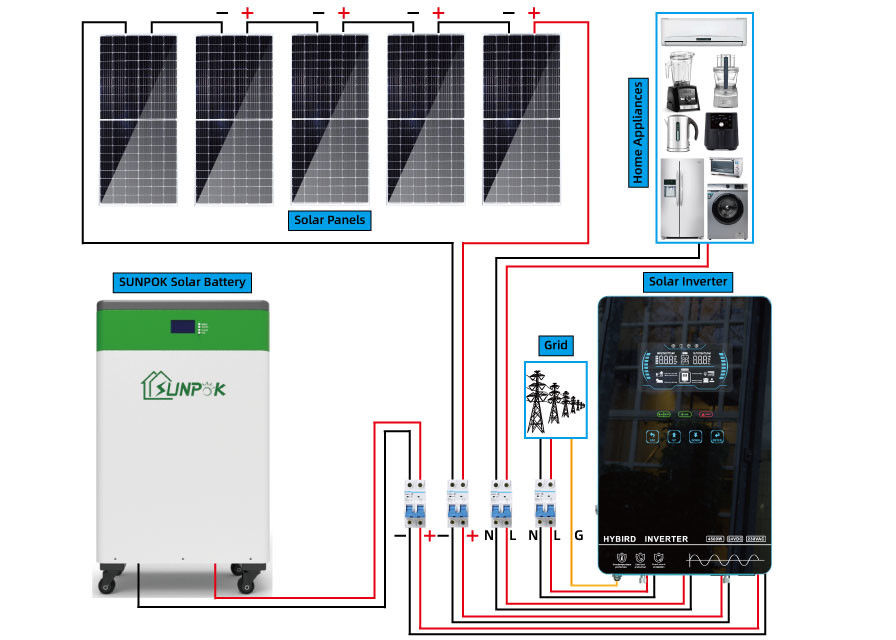

The components of an off-grid solar power system include solar panels, charge controllers, batteries, an inverter, and a backup generator. The solar panels convert sunlight into direct current (DC) electricity, which is then sent to the charge controller to regulate the voltage and ensure the batteries are charged properly. The inverter converts the DC electricity into alternating current (AC) electricity, which is then used to power the appliances and devices in the home.
There are several benefits to using an off-grid solar power system. It provides a reliable source of power that is not subject to outages or brownouts, it is environmentally friendly and produces no emissions, and it can be less expensive over the long term compared to using grid electricity, especially if you live in an area with high electricity rates.
However, there are also some challenges to using an off-grid solar power system. It can be expensive to install, especially if you need a large system to power a large home or business. Additionally, it requires careful planning and sizing to ensure that you have enough power to meet your needs, especially during periods of prolonged cloudy weather.
Overall, an off-grid solar power system can be a good choice for those who want to reduce their dependence on the electrical grid and generate their own power. However, it is important to carefully consider all of the costs, benefits, and challenges before making a decision.
Advantages Of Sunpok Complete Off-Grid Solar System With Batteries
Relying on its strong R&D and design capabilities and years of industry experience, Sunpok Energy has vertically integrated high-quality suppliers in China and can provide one-stop new energy system customization services for customers around the world.
The main advantages of sunpok energy's home solar energy storage system are:
1. A suitable solar system can be designed according to the specific needs of customers.
We will customize solar energy systems for customers according to customers in different countries and regions and their electricity consumption habits. Bring high-quality user experience to customers.
2. Reasonable power configuration of each component (PV, Inverter and Battery).
Sunpok Energy will confirm how much PV power, inverter power, and battery capacity the system needs according to the reasonable collocation of each component, so as to prolong the service life of the system.
3. Safe and reliable structural design
We will design a reasonable structural plan for the customer according to the customer's installation site and local climate conditions.
4. Superior product quality
Sunpok Energy always regards product quality as the first priority. The quality of our batteries, PV Panels, inverters, and other system accessories are at the leading level in the world, making the life of the entire solar energy storage system more than 25 years.
5. The price advantage of the leading industry
After years of development, Sunpok Energy has integrated upstream and downstream supply resources, so the price is very friendly.
6. Comprehensive after-sale protection
Sunpok's after-sales team will solve problems for customers 24 hours a day, once customers order products from us, we will provide lifetime maintenance.
Main System Configuration
System Power | 3Kw Solar System | 5Kw Solar System | 10Kw Solar System |
Solar Pannels | 6 Pieces 450W Mono | 10 Pieces 450W Mono | 20 Pieces 450W Mono |
Battery | 24V 200Ah | 48V 200Ah | 48V 400Ah |
Inverter | 3.5Kw Off-Grid Inverter | 5Kw Off-Grid Inverter | 10Kw Off-Grid Inverter |
Power Generation/Per Day | 12.96Kwh | 21.6Kwh | 43.2Kwh |
Back-Up Power | 4.8Kwh | 9.6Kwh | 19.2Kwh |
Max On-Load | 3.5Kw | 5Kw | 10Kw |
Total Volume/Package | 1.92CBM | 2.18CBM | 3.38CBM |
Total Weight | 330Kg | 580Kg | 1120Kg |
Configuration Details
1. Energy storage lithium battery
2. Photovoltaic panels
3. Off Grid Inverter
4. Solar Mounting System
5. Accessories
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech green energy enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in September 2016.
After more than 20 years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 15 days.
Question 2:What is the warranty period, and how many years?
Answer 2: The warranty period for batteries and inverters is 5-10 years, and the warranty period for photovoltaic panels is 25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to oversea help our customers if necessary.
Question 4:How to become your agent?
Answer 4: Contact us through web email or phone, and we can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
