Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE
Model Number:
SP-48200-YD
Video
Video
How Long Will A 100Ah Lithium Battery Run?
How Long Will 100Ah Battery Last For Common appliances? A fridge that consumes 630 kWh per year can run for 13.3 hours using a deep cycle, lead-acid battery. At a 50% DoD rate, it will run for 8.3 hours. A lithium battery can power it for 15.8 hours.

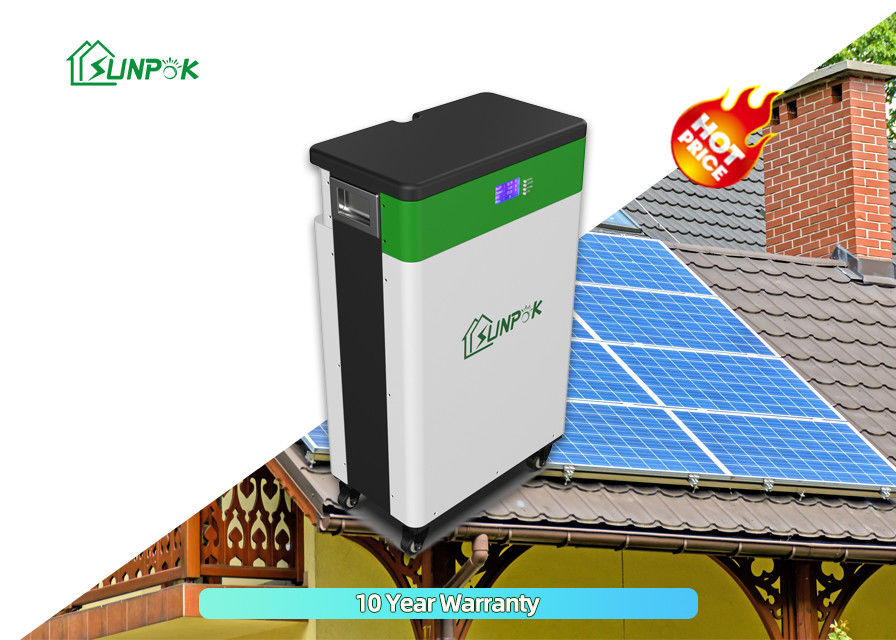

Sunpok 48V Energy Storage Lithium Battery
The 48V low-voltage energy storage lithium battery product independently developed by Sunpok Energy Group has a complete set of property rights for R&D, design, and production, and has the following main advantages:
The battery utilizes a safe lithium iron phosphate chemistry.
Rigorous product design and manufacturing contribute to a battery life of over 6000 cycles (at 80% depth of discharge, 0.5C rate, and 25℃).
Intelligent:
Each battery is equipped with an independent and efficient Battery Management System (BMS).
The BMS manages power output intelligently and comprehensively safeguards the battery's safety.
Modularization:
The battery supports a modular design, enabling easy expansion and configuration.
Up to 16 batteries can be connected in parallel, and end-users can select the configuration based on their household power consumption needs.
Easy Installation and Use:
The battery is designed for plug-and-play installation, reducing both installation time and cost.
The compact and fashionable design ensures seamless integration into a home environment.
Compatibility:
The battery system supports various communication protocols, including RS485, CANBUS, and RS232.
This compatibility ensures seamless integration with a wide range of off-grid or hybrid inverter brands.
This comprehensive set of features positions the Sunpok 48V Energy Storage Lithium Battery as a reliable and user-friendly solution for energy storage, suitable for both residential and off-grid applications. The combination of safety, intelligence, modularity, ease of use, and compatibility makes it a promising choice for consumers seeking efficient and sustainable energy solutions.
48V Energy Storage Lithium Battery Parameters
| Model No | SP-48200-YD | SP-48250-YD | SP-48280-YD |
| Nominal Parameters | |||
| Voltage | 51.2V | 51.2V | 51.2V |
| Capacity | 200Ah | 250Ah | 280Ah |
| Energy | 10.24Kwh | 12.8Kwh | 14.336Kwh |
| Dimensions (L*W*H) | 520*300*880mm | 520*300*880mm | 520*300*880mm |
| Weight | 118Kg | 140Kg | 158Kg |
| Basic Parameters | |||
| Lifetime(25℃) | 20 Years | ||
| Life cycles(80% DOD,25℃) | >6000 Times | ||
| Storage time temperature | 5 months @ 25℃； 3 months @ 35℃； 1 month @ 45℃ | ||
| Operation temperature | -20℃ to 60℃@60+/-25% Relative Humidity | ||
| Storage temperature | 0℃ to 45℃@60+/-25% Relative Humidity | ||
| Lithium Battery Standard | UL1642,IEC62619,UN38.3,ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Electrical Parameters | |||
| Operation Voltage | 44V-58.4V | 44V-58.4V | 44V-58.4V |
| Max charging voltage | 58.4V | 58.4V | 58.4V |
| Max charging and discharging current | 100A | 100A | 100A |
| Max Power | 5120W | 5120W | 5120W |
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in 2016.
After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.

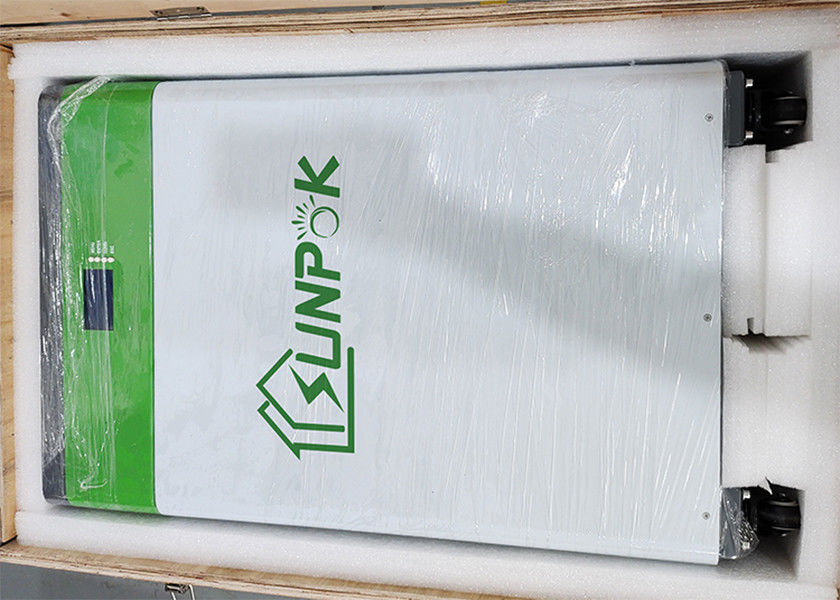

48V Energy Storage Lithium Battery Product Display
The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.
Use the world's leading testing equipment to carry out comprehensive testing of batteries.
Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.
48V Energy Storage Lithium Battery Project Display
FAQ
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.
Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.
Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for batteries is 5-10 years.
Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 5: How to become your agent?
Answer 5: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 6: Is the sample available and free?
Answer 6: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 7: Do you support OEM/ODM?
Answer 7: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
