120Ah 150Ah 200Ah 300Ah 48V Lithium Ion Battery Large Capacity

Lithium Ion Battery Large Capacity 48V 120Ah 150Ah 200Ah 10kwh Price

The Lithium-ion Battery

Pioneer work with the lithium battery began in 1912 under G.N. Lewis but it was not until the early 1970s when the first non-rechargeable lithium batteries became commercially available. lithium is the lightest of all metals, has the greatest electrochemical potential and provides the largest energy density for weight.

Attempts to develop rechargeable lithium batteries failed due to safety problems. Because of the inherent instability of lithium metal, especially during charging, research shifted to a non-metallic lithium battery using lithium ions. Although slightly lower in energy density than lithium metal, lithium-ion is safe, provided certain precautions are met when charging and discharging. In 1991, the Sony Corporation commercialized the first lithium-ion battery. Other manufacturers followed suit.

The energy density of lithium-ion is typical twice that of the standard nickel-cadmium. There is potential for higher energy densities. The load characteristics are reasonably good and behave similarly to nickel-cadmium in terms of discharge. The high cell voltage of 3.6 volts allows battery pack designs with only one cell. Most of today's mobile phones run on a single cell. A nickel-based pack would require three 1.2-volt cells connected in series.

Lithium-ion is a low-maintenance battery, an advantage that most other chemistries cannot claim. There is no memory and no scheduled cycling is required to prolong the battery's life. In addition, the self-discharge is less than half compared to nickel-cadmium, making lithium-ion well suited for modern fuel gauge applications. lithium-ion cells cause little harm when disposed.

Despite its overall advantages, lithium-ion has its drawbacks. It is fragile and requires a protection circuit to maintain safe operation. Built into each pack, the protection circuit limits the peak voltage of each cell during charge and prevents the cell voltage from dropping too low on discharge. In addition, the cell temperature is monitored to prevent temperature extremes. The maximum charge and discharge current on most packs are is limited to between 1C and 2C. With these precautions in place, the possibility of metallic lithium plating occurring due to overcharge is virtually eliminated.

Aging is a concern with most lithium-ion batteries and many manufacturers remain silent about this issue. Some capacity deterioration is noticeable after one year, whether the battery is in use or not. The battery frequently fails after two or three years. It should be noted that other chemistries also have age-related degenerative effects. This is especially true for nickel-metal-hydride if exposed to high ambient temperatures. At the same time, lithium-ion packs are known to have served for five years in some applications.

Manufacturers are constantly improving lithium-ion. New and enhanced chemical combinations are introduced every six months or so. With such rapid progress, it is difficult to assess how well the revised battery will age.

Storage in a cool place slows the aging process of lithium-ion (and other chemistries). Manufacturers recommend storage temperatures of 15°C (59°F). In addition, the battery should be partially charged during storage. The manufacturer recommends a 40% charge.

The most economical lithium-ion battery in terms of cost-to-energy ratio is the cylindrical 18650 (size is 18mm x 65.2mm). This cell is used for mobile computing and other applications that do not demand ultra-thin geometry. If a slim pack is required, the prismatic lithium-ion cell is the best choice. These cells come at a higher cost in terms of stored energy.

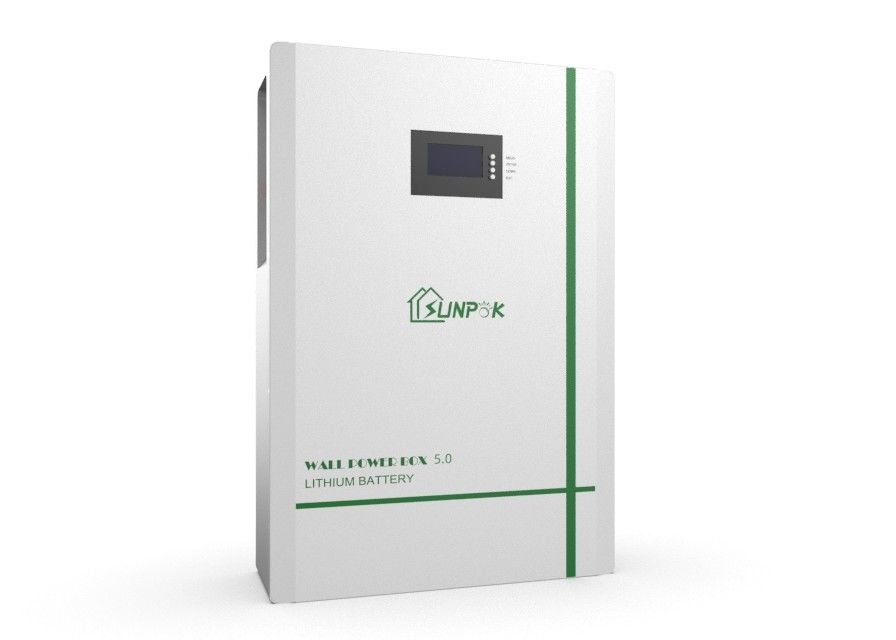

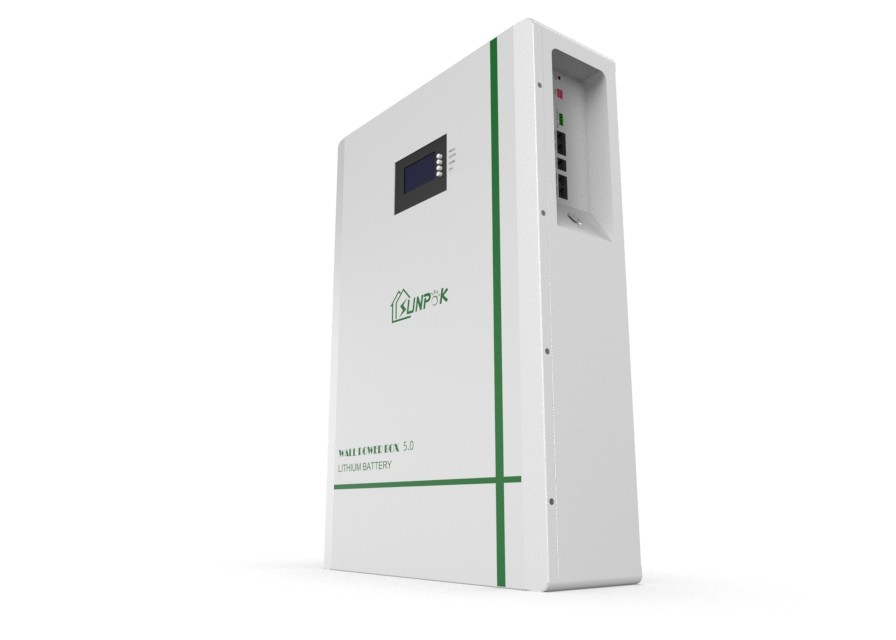

Sunpok 48V Energy Storage Lithium Battery

This Lithium Ion Battery can be used for a variety of applications such as solar energy storage, home energy storage, backup power, and so on. Its features include high energy density, high efficiency, long cycle life, and low self-discharge rate. The 48V 100Ah 5Kwh 7.5Kwh 10Kwh configuration provides up to 10kWh of energy storage capacity, allowing for more flexibility and efficiency. The battery is also designed for safe and easy charging and discharging, ensuring safety and reliability. With its advanced technology, it is suitable for all kinds of energy storage application scenarios.

1. Long life and safety

The safe new lithium iron phosphate battery and reasonable and rigorous product design and manufacture make the battery life more than 6000 times (DOD 80%, 0.5C, 25℃).

2. Intelligent

Each battery has an independent and efficient BMS system, which can intelligently and effectively manage power output and comprehensively protect battery safety.

3. Modularization

Each battery can support a maximum of 16 in parallel, and end customers can choose according to their household power consumption.

4. Easy to install and use

Just plug and play to minimize the installation time and cost. The compact and fashionable design fits in your sweet home environment.

5. Compatibility

With RS485, CANBUS, and other communication protocols, it can be perfectly compatible with all off-grid or hybrid inverter brands.


48V Energy Storage Lithium Battery Parameters

About Sunpok Energy

Guangzhou sunpok energy co., ltd. is a high-tech enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in October 2016.

After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.

The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:

1. Energy Storage Lithium Battery

2. 48 Volt Lithium Ion Battery

3. Lithium Portable Power Station

4. All In One Energy Storage System

5. Complete Off Grid Solar System

6. Hybrid Solar System Kit

7. Wind Solar Hybrid Power System

8. Off Grid Inverter

9. Deep Cycle Lithium Battery

10. 12V Gel Battery

11. Mono PV Panels

12. Residential Wind Turbine

Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.


48V Energy Storage Lithium Battery Product Display

The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.


Use the world's leading testing equipment to carry out comprehensive testing of batteries.


Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.




48V Energy Storage Lithium Battery Project Display




FAQ

Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.

Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.

Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for batteries is 5-10 years.

Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.

Question 5: How to become your agent?
Answer 5: Contact us through the website, email, or phone, and we can talk about details to confirm.

Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.

If you have other questions, please add the contact information of our sales manager to understand, thank you!
