Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
SP-12100-GEL
How Does a Gel Battery Work?
A gel battery s a valve-regulated, lead acid battery in which a pre-determined quantity of an electrolyte, together with sulphuric acid is combined with silica fumes. This chemical reaction results in an immobile, gel-like mass giving these batteries their name. The gel batteries are virtually maintenance-free as they use one-way open valves that allow the internal gasses to recombine into the water, hence removing any need to check to top up distilled water or monitor the water level. Gel batteries are extremely robust and versatile. They are safe to be installed in places where ventilation is limited, due to the fact that they have a very low (virtually zero) gas/fumes production, which means you can even install the batteries inside your home.

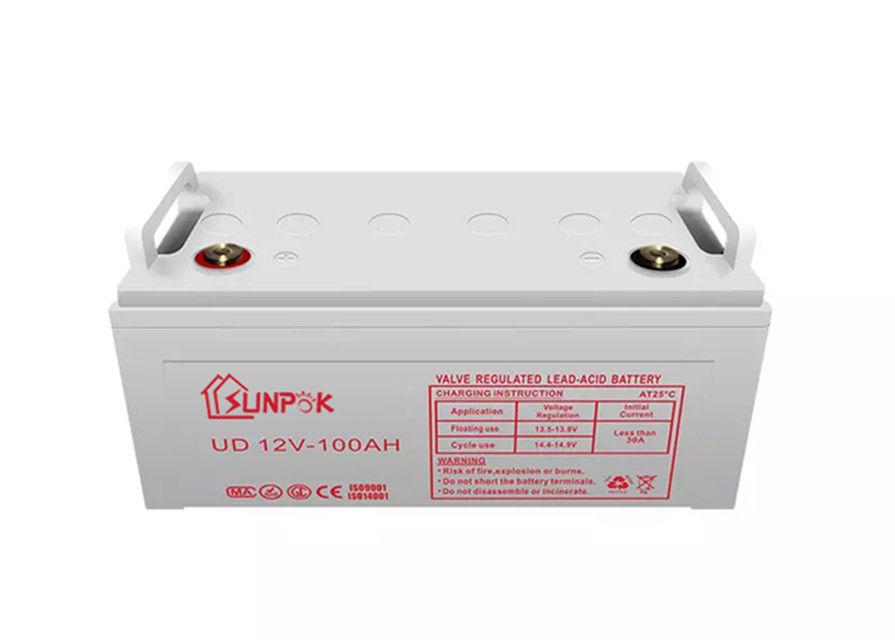

Sunpok 12V Gel Battery Main Parameter
| Model | SP-12100-GEL | SP-12150-GEL | SP-12200-GEL | SP-12250-GEL |
| Cells Per Unit | 6 | |||
| Voltage Per Unit | 12V | |||
| Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C |
| Weight | 15Kg | 29kg | 42kg | 58.5kg |
| Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ |
| Terminal | F1/F2 | |||
| Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) |
| Design Life | 10~15 years | |||
| Maximum Charging Current | 25A | 37.5A | 50A | 62.5A |
| Float Charging Voltage |
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
|
|||
| Cycle Use Voltage |
14.4 V~14.9 V @ 25°C
Cycle Use Voltage
Temperature Compensation: -30mV/°C/Cell
|
|||
| Operating Temperature Range |
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
|
|||
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | |||
Advantages:
1. High-purity lead-tin alloy, reduce battery self-discharge rate and increase battery service life.
2. ABS battery case made by LG raw material to increase battery service life.
3. Heat sealing technique instead of glue sealing to increase the tightness and stability of the battery.
4. TTP technique not only reduces internal resistance and material cost but also increases battery life.
5. Conduct four large current discharge texting before the package to insure battery quality.
6. Full charge before delivery. Buy and use it directly.
Main Applications
12V GEL battery can be widely used in solar energy storage, wind energy storage, backup power and other scenarios.
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech green energy enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in September 2016.
After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.
48V Energy Storage Lithium Battery Product Display

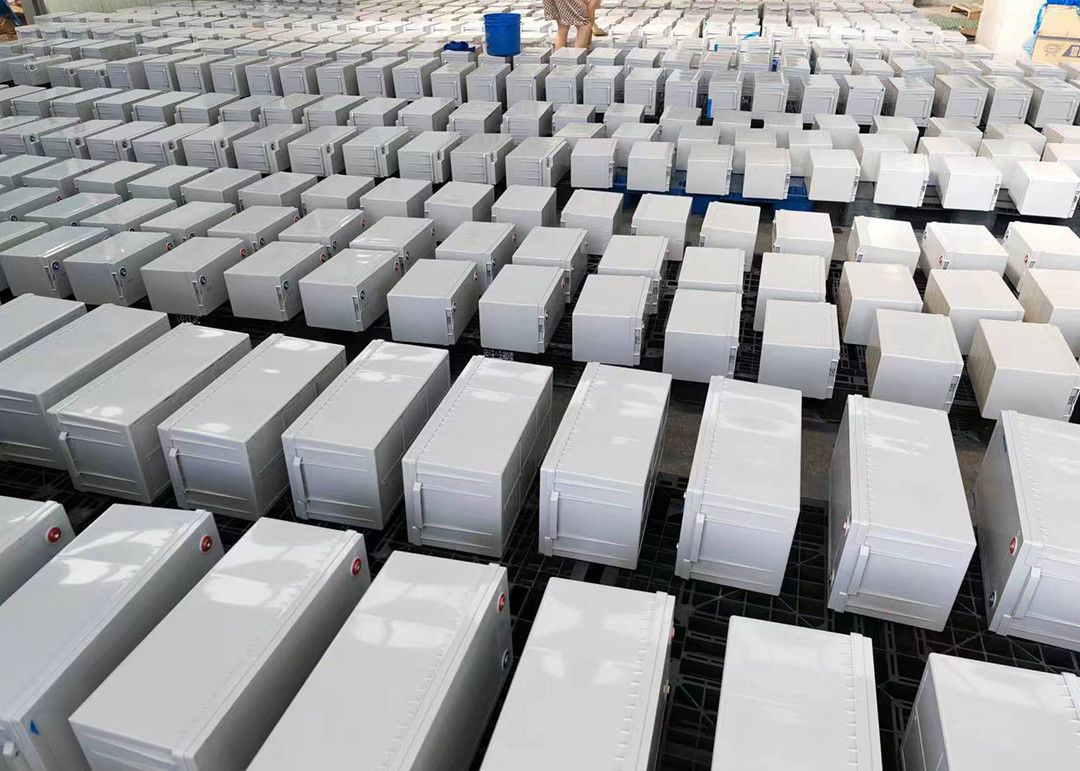

The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.
Use the world's leading testing equipment to carry out comprehensive testing of batteries.
Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.
48V Energy Storage Lithium Battery Project Display
FAQ
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.
Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.
Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for batteries is 5-10 years.
Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 5: How to become your agent?
Answer 5: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 6: Is the sample available and free?
Answer 6: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 7: Do you support OEM/ODM?
Answer 7: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
Send your inquiry directly to us
