Place of Origin:
China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
SP-12100
How Safe Are Lithium-ion Batteries?
In fact, batteries can be said to be energy cans. Lithium-ion batteries, which can store energy at a high density per unit volume, require safety considerations more than other types of batteries. And from the point of view of using flammable organic solvents, it also needs to be more careful in operation and use than other batteries that use aqueous solutions.
The most important thing to avoid is the internal short circuit problem. Internal short circuit refers to the state in which the battery is deformed due to external force, and the positive and negative electrodes are in direct contact. Current is concentrated here, causing serious accidents such as temperature rise and battery fire. Even very small impurities, once mixed into the battery, may cause an internal short circuit, which requires the design of a protection circuit to prevent excess current from flowing in the battery, so that the battery has an accident-proof function.
There are other means such as the use of cooling devices to keep the working environment of the battery below 60°C, and it is also important to control the temperature of the battery. A diaphragm is installed between the positive and negative electrodes. If the temperature exceeds a certain level, the diaphragm will act as a complete barrier between the positive and negative electrodes. Use your brains to improve safety in various ways.
Generally speaking, the operating temperature of lithium batteries should not exceed 60°C, which is very safe.

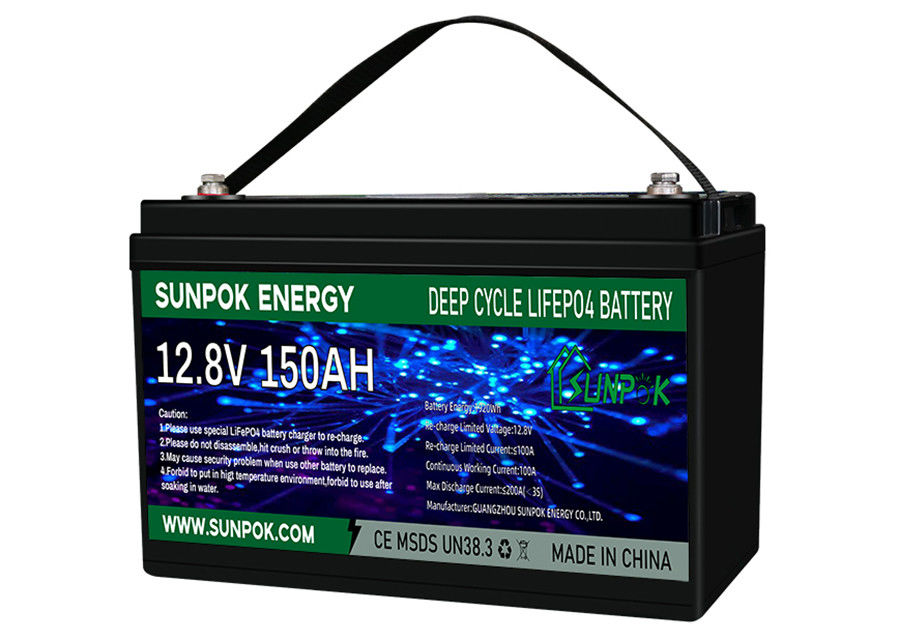

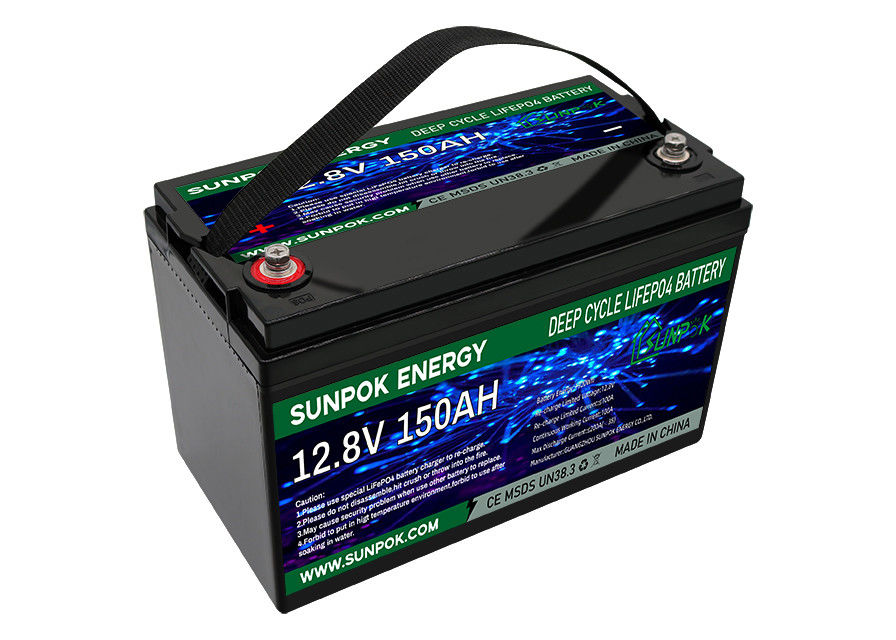

SUNPOK 12 Volt 24 Volt Deep Cycle Battery
Sunpok 12 Volt 24V Volt Lithium Iron Phosphate Deep Cycle Battery, specifically designed for deep cycle lead acid batteries with standard BCI pack sizes. It is suitable for power consumption environments such as solar power storage, wind power storage, RV, yachts, and low-speed vehicles. The service life is 5-8 times that of lead-acid batteries, and the weight is only half that of lead-acid batteries. Built-in intelligent BMS (battery management system), with advanced protection software, can fully protect battery safety.
Sunpok 12 Volt 24V Volt lithium iron phosphate deep cycle battery adopts the international leading cell module technology, which can achieve 100% DOD (depth of discharge), and the battery is equipped with a Bluetooth module, which can remotely monitor the internal details of the battery through mobile phones anytime, anywhere.
Support Multiple Batteries in Series
Bluetooth Communication Function
Product Specification
Basic Parameter | |||
Nominal Voltage | 12.8V | 12.8V | 12.8V |
Related Capacity | 100Ah | 150Ah | 200Ah |
Energy | 1280Wh | 1920Wh | 2560Wh |
Cycle Life | 3500 Cycles | 3500 Cycles | 3500 Cycles |
Operation Parameter | |||
Charge Voltage | 14.6V | 14.6V | 14.6V |
Cut-Off Voltage | 11V | 11V | 11V |
Constant charge Current | 100A | 100A | 200A |
Discharge Current | 100A | 100A | 200A |
Peak Discharge Current | 200A | 200A | 300A |
Working Temperature | -20~65 (℃) | -20~65 (℃) | -20~65 (℃) |
Physical | |||
Dimension | 327*168*213mm | 522*238*218mm | 522*238*218mm |
Weight | 12.75Kg | 19.8Kg | 28.2Kg |
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in October 2016.
After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 20,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.
48V Energy Storage Lithium Battery Product Display
The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.
Use the world's leading testing equipment to carry out comprehensive testing of batteries.
Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.
48V Energy Storage Lithium Battery Project Display
FAQ
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.
Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.
Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for deep-cycle batteries is 3 years.
Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 5: How to become your agent?
Answer 5: Contact us through the website, email, or phone, and we can talk about details to confirm.
Question 6: Is the sample available and free?
Answer 6: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 7: Do you support OEM/ODM?
Answer 7: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
Send your inquiry directly to us
