Place of Origin:
Guangdong, China
Brand Name:
SUNPOK
Certification:
CE MSDS UN38.3
Model Number:
SP-48100-BG
Video
Video
How Many KW Is 48V 100Ah Battery?
Lithium batteries: A battery with a capacity of 100Ah and voltage of 51.2V yields a total energy capacity of 4,800Wh. Considering an 80% Depth of Discharge (D.O.D), the usable energy capacity becomes 4,096Wh or 4.096kWh (units).

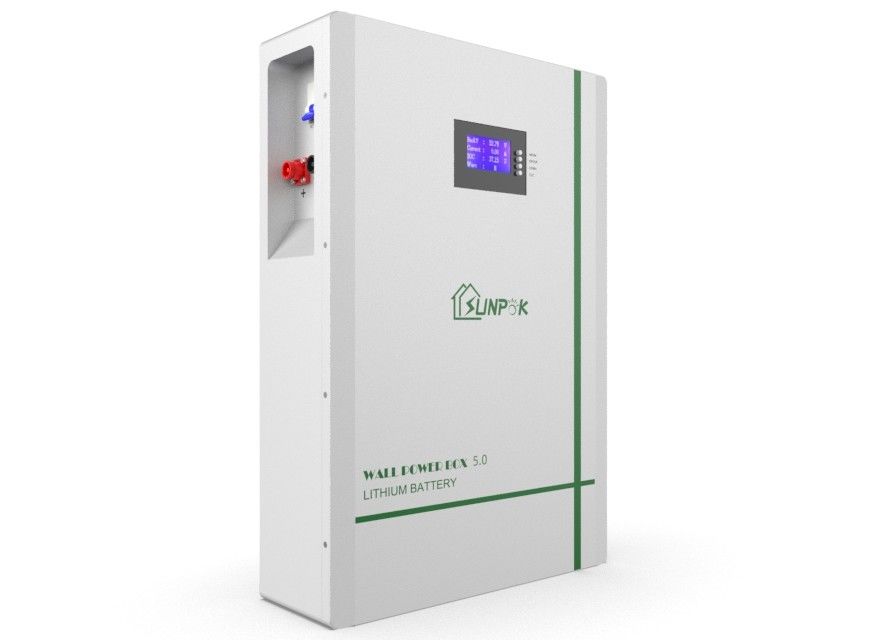

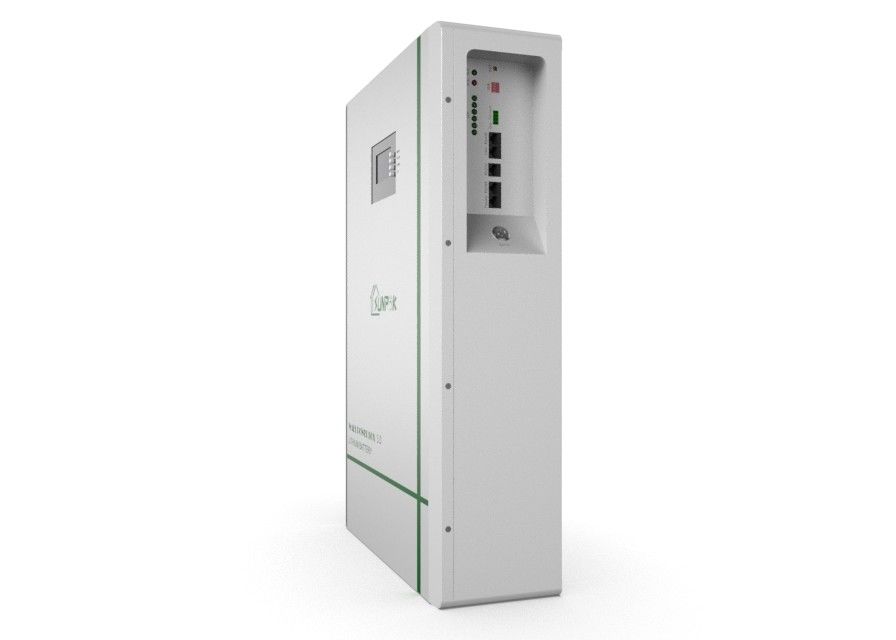

Sunpok 48V Energy Storage Lithium Battery
This Lithium Ion Battery is versatile, finding applications in solar energy storage, home energy storage, backup power, and more. It boasts features like high energy density, efficiency, long cycle life, and a low self-discharge rate. The 48V battery configurations, available in 100Ah, 5kWh, 7.5kWh, and 10kWh, offer up to 10kWh of energy storage capacity, enhancing flexibility and efficiency. The battery's design prioritizes safety and convenience during charging and discharging processes, ensuring reliability.
With its cutting-edge technology, this battery suits various energy storage scenarios.
Longevity and Safety:
The battery employs a secure lithium iron phosphate composition, combined with meticulous product design and manufacturing practices, resulting in a life span exceeding 6,000 cycles (DOD 80%, 0.5C, 25℃).
Intelligent Functionality:
Equipped with an independent and efficient Battery Management System (BMS), each battery unit adeptly manages power output and offers comprehensive safeguards for battery safety.
Modular Adaptability:
Modular by design, each battery supports a maximum of 16 units in parallel, affording end customers the freedom to select units based on their household energy consumption needs.
Simple Installation and Use:
Effortless "plug and play" installation minimizes both time and cost. The battery's sleek, modern design seamlessly complements any home environment.
Universal Compatibility:
Integrated with communication protocols like RS485, CANBUS, and RS232, the battery harmonizes with various off-grid or hybrid inverter brands, ensuring compatibility across the board.
This advanced Lithium Ion Battery represents a fusion of innovation, efficiency, and safety, catering to diverse energy storage requirements with utmost reliability.
48V Energy Storage Lithium Battery Parameters
| Model No | SP-48100-BG | SP-48150-BG | SP-48200-BG |
| Nominal Parameters | |||
| Voltage | 51.2V | 51.2V | 51.2V |
| Capacity | 100Ah | 150Ah | 200Ah |
| Energy | 5.12Kwh | 7.68Kwh | 10.24Kwh |
| Dimensions (L*W*H) | 600*400*150mm | 790*496.3*201.2mm | 790*496.3*201.2mm |
| Weight | 58Kg | 92Kg | 108Kg |
| Basic Parameters | |||
| Lifetime(25℃) | 20 Years | ||
| Life cycles(80% DOD,25℃) | >6000 Times | ||
| Storage time temperature | 5 months @ 25℃； 3 months @ 35℃； 1 month @ 45℃ | ||
| Operation temperature | -20℃ to 60℃@60+/-25% Relative Humidity | ||
| Storage temperature | 0℃ to 45℃@60+/-25% Relative Humidity | ||
| Lithium Battery Standard | UL1642,IEC62619,UN38.3,ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Electrical Parameters | |||
| Operation Voltage | 44V-58.4V | 44V-58.4V | 44V-58.4V |
| Max charging voltage | 58.4V | 58.4V | 58.4V |
| Max charging and discharging current | 100A | 100A | 100A |
| Max Power | 5120W | 5120W | 5120W |
About Sunpok Energy
Guangzhou sunpok energy co., ltd. is a high-tech enterprise integrating battery research and development, design, and production. It was registered in Guangzhou, China in October 2016.
After years of development, sunpok energy has become a leader in China's energy storage industry, vertically integrated upstream and downstream supply chain resources, continuously optimized the company's product matrix, improved product performance, and won praise from customers at home and abroad.
The products of sunpok energy have been sold all over the world, bringing green energy to more than 12,000 families and units. At present, the products of sunpok energy mainly include:
1. Energy Storage Lithium Battery
2. 48V Lithium Ion Battery
3. Lithium Portable Power Station
4. All In One ESS
5. Complete Off Grid Solar System
6. Hybrid Solar System Kit
7. Wind Solar Hybrid Power System
8. Off Grid Inverter
9. Deep Cycle Lithium Battery
10. 12V Gel Battery
11. Mono PV Panels
12. Residential Wind Turbine
Mutual benefit and win-win results have always been the tenet of Sunpok Energy. In the future, sunpok energy will work with partners to scale new heights with a more inclusive attitude.
48V Energy Storage Lithium Battery Product Display
The production of energy storage lithium batteries is operated by professional workers with more than 5 years of experience.
Use the world's leading testing equipment to carry out comprehensive testing of batteries.
Strong R & D and production capacity of energy storage lithium battery, can provide OEM/ODM service for partners all over the world.
48V Energy Storage Lithium Battery Project Display
FAQ
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of batteries, and can also provide solutions for the entire solar system.
Question 2: What is the lead time?
Answer 2: We can deliver within 3-15 days.
Question 3: What is the warranty period, and how many years?
Answer 3: The warranty period for batteries is 5-10 years.
Question 4: How is your technical support?
Answer 4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.
If you have other questions, please add the contact information of our sales manager to understand, thank you!
